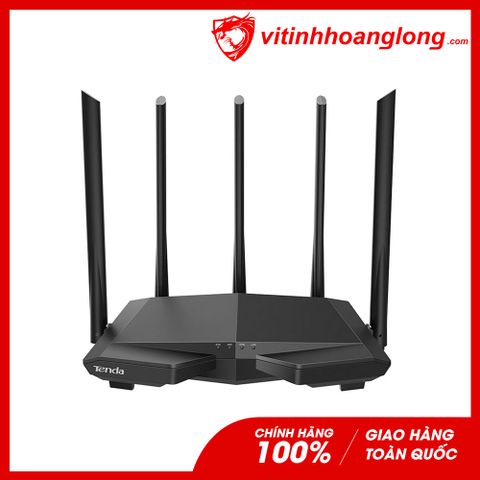

Bộ router phát wifi Tenda Archer AC7 AC1200 Smart Dual-Band 1200Mbps 5 anten

Tiêu chuẩn và Giao thức

IEEE802.3, IEEE802.3u

Cổng kết nối

1*10/100Mbps WAN port

 3*10/100Mbps LAN ports

Ăng-ten

5*6dBi external antennas

Nút

1*WiFi on/off, 1* WPS/Reset button

Nguồn điện

Input：100-240V—50/60Hz, 0.2A

Output：DC 9V1A

Kích thước

220mm*141.5mm*49mm

Trọng lượng

Net weight:310g±50g Weight：760g±100g

LED

Sys*1,WAN*1, LAN*1,WiFi*1

Tiêu chuẩn không dây

IEEE 802.11ac/a/n 5GHz

IEEE 802.11b/g/n 2.4GHz

Tốc độ

5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps

Tần số

Simultaneous dual band 2.4 & 5GHz

Transmit Power

CE:

<20dBm(2.4G)

<23dBm(5G)

FCC:

<30dBm

Tính năng cơ bản

SSID Broadcast: Enable/Disable

Transmission Power: high, medium, low

Beamforming

MU-MIMO

Giao thức bảo mật không dây

WPA-PSK/WPA2-PSK, WPA/WPA2

 Wireless Security: Enable/Disable

 WPS(WiFi Protected Set-up) fast encryption

Internet Connection Type

PPPoE, Dynamic IP, Static IP

PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Chế độ hoạt động

Wireless Router Mode

Universal Repeater Mode

WISP Mode

DHCP Server

DHCP Server

DHCP Client List

DHCP Reservation

Virtual Server

Port Forwarding

DMZ Host

UPnP

Bảo mật

Client Filter

Parental Control(support black list and white list)

Remote Web Management

Firewall

orbid UDP flood attack

Forbid TCP flood attack

Forbid flood attack

Forbid WAN PING from internet

DDNS

Support DynDNS, Oray.com, 88ip

VPN

IPsec pass through

PPTP pass through

L2TP pass through

PPTP server

PPTP client

L2TP client

Tính năng đặc biệt

PPPoE Username/password Clone

Smart WiFi Schedule

Smart Power Saving

Smart LED on/off

Tenda Cloud

Tenda App

Khác

Bandwidth Control

Guest Network

IPTV

MAC Clone

Static Routing

System Log

Backup & Restore configurations

Firmware upgrade online

Firmware upgradeable via browser

Nhiệt độ

Operating Temperature: 0℃ ~ 40℃

Storage Temperature: -40℃ ~ 70℃.

Độ ẩm

perating Humidity:10% ~ 90% RH non-condensing

Storage Humidity: 5% ~ 90%RH non-condensing.

Chứng nhận

CE/FCC/RoHS

Đóng gói tiêu chuẩn

AC1200 Smart Dual-Band WiFi Router

Power Adapter

Install Guide

Ethernet Cable
