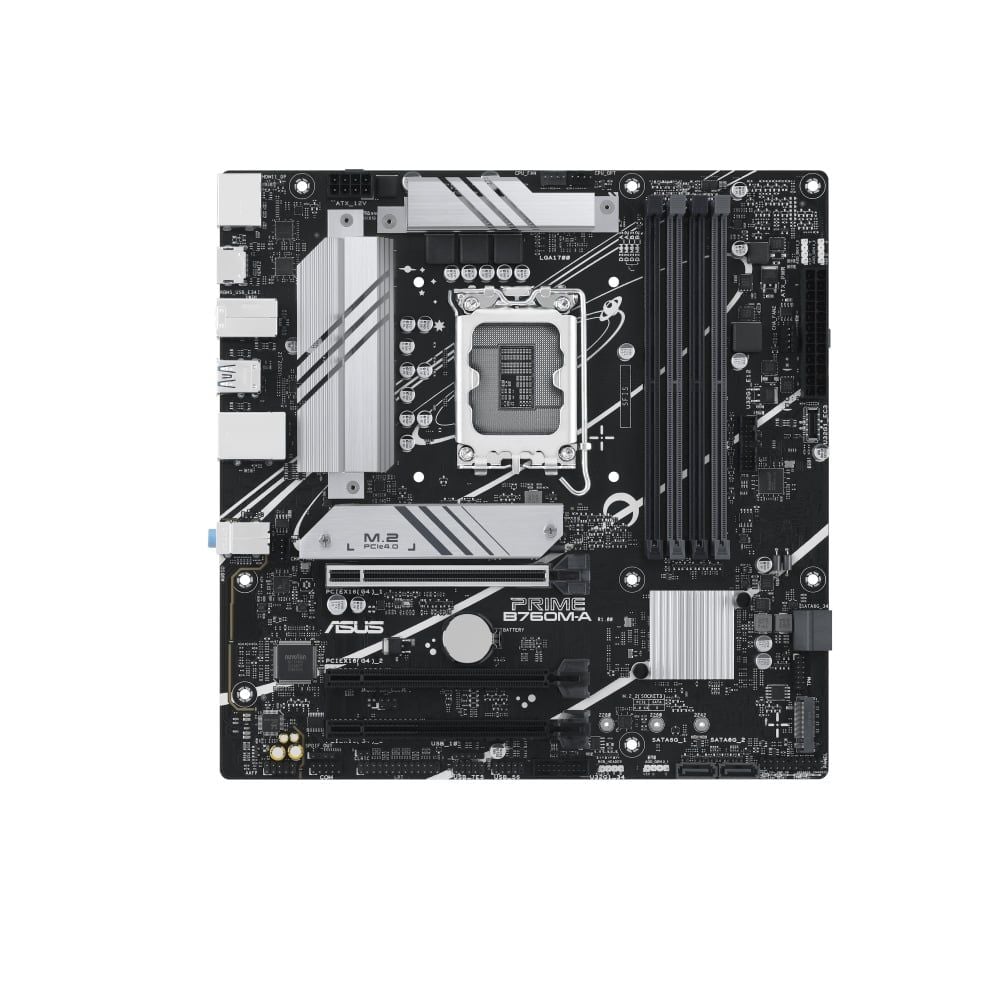

Mainboard Asus PRIME B760M-A WIFI DDR5

BẢO HÀNH: 36 THÁNG

⚙ THÔNG SỐ CƠ BẢN:

CPU:

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• *Refer to www.asus.com for CPU support list.
• **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset:

• Intel® B760 Chipset

Memory:

• 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• • Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/
• • Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics:

• 1 x DisplayPort**
• 2 x HDMITM ports***
• • Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMITM 2.1.

Expansion Slots:

• Intel® 13th & 12th Gen Processors: 1 x PCIe 4.0 x16 slot
• Intel® B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode)
• Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage:

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® 13th & 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports
• • Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet:

• 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth:

• Wi-Fi 6: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2
• • The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB:

• Rear USB (Total 6 ports): 2 x USB 3.2 Gen 2 ports (2 x Type-A ), 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 10 ports): 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
• • A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

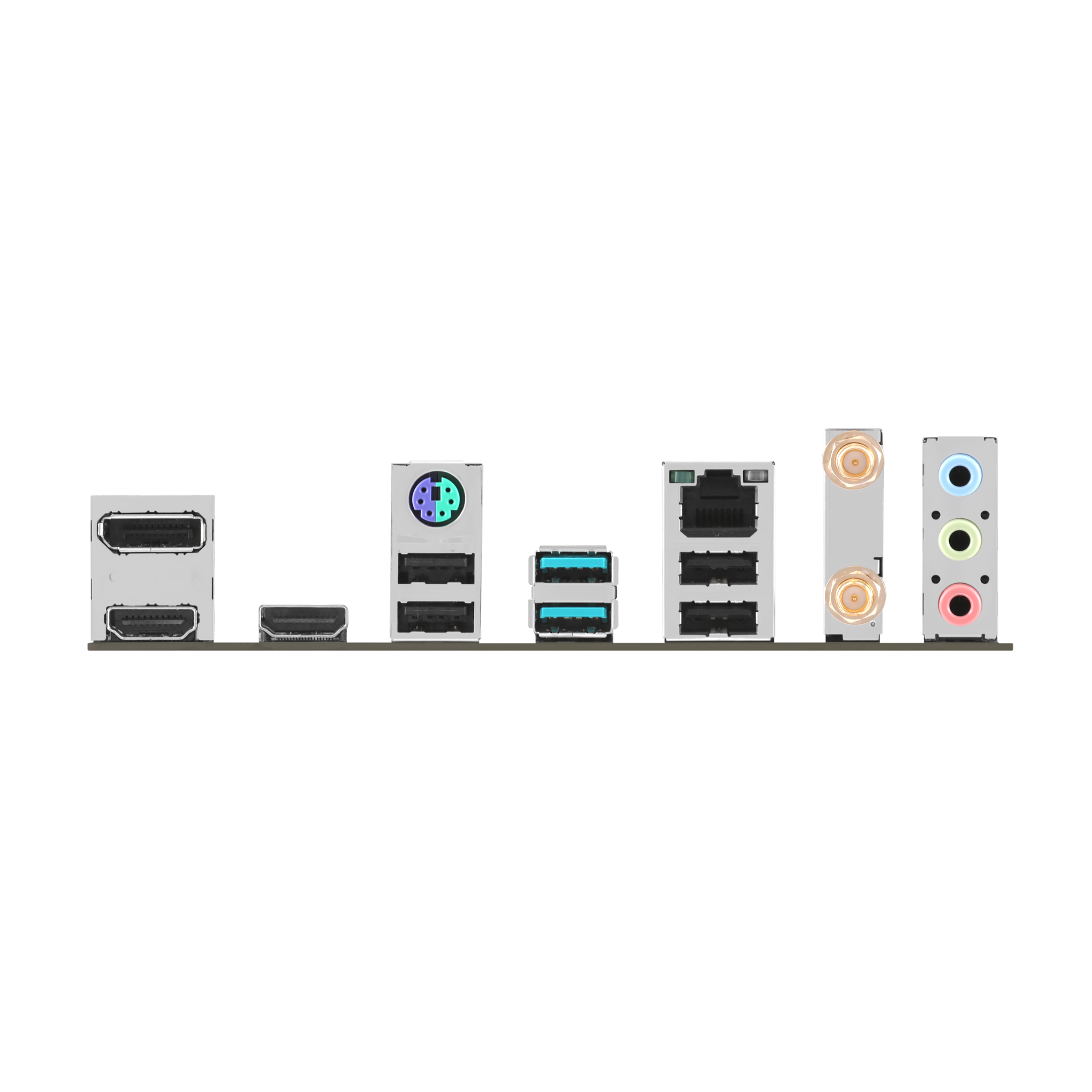

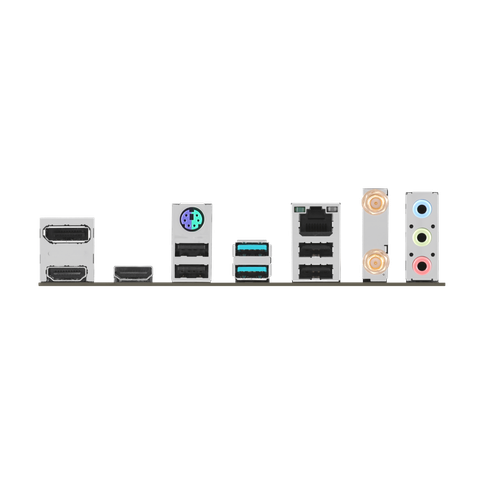

Back Panel I/O Ports:

• 2 x USB 3.2 Gen 2 ports (2 x Type-A ), 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 2 x HDMITM ports
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors:

• Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers
• Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector
• Storage related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
• USB: 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port
• Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x LPT header, 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features:

• ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O
• ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot
• ASUS Thermal Solution: M.2 heatsink, VRM heatsink design
• ASUS EZ DIY: ProCool
• Aura Sync: Aura RGB header, Addressable Gen 2 headers

Software Features:

• ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving), AI Suite 3 (Digi+ VRM, PC Cleaner), ASUS CPU-Z, MyAsus, Norton Deluxe (60 Days Free Trial), WinRAR
• UEFI BIOS: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

BIOS:

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability:

• WOL by PME, PXE

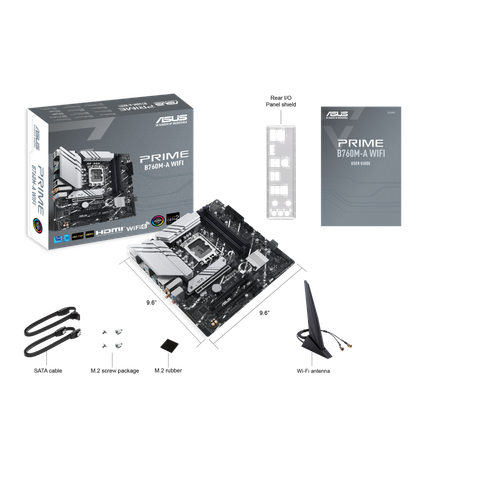

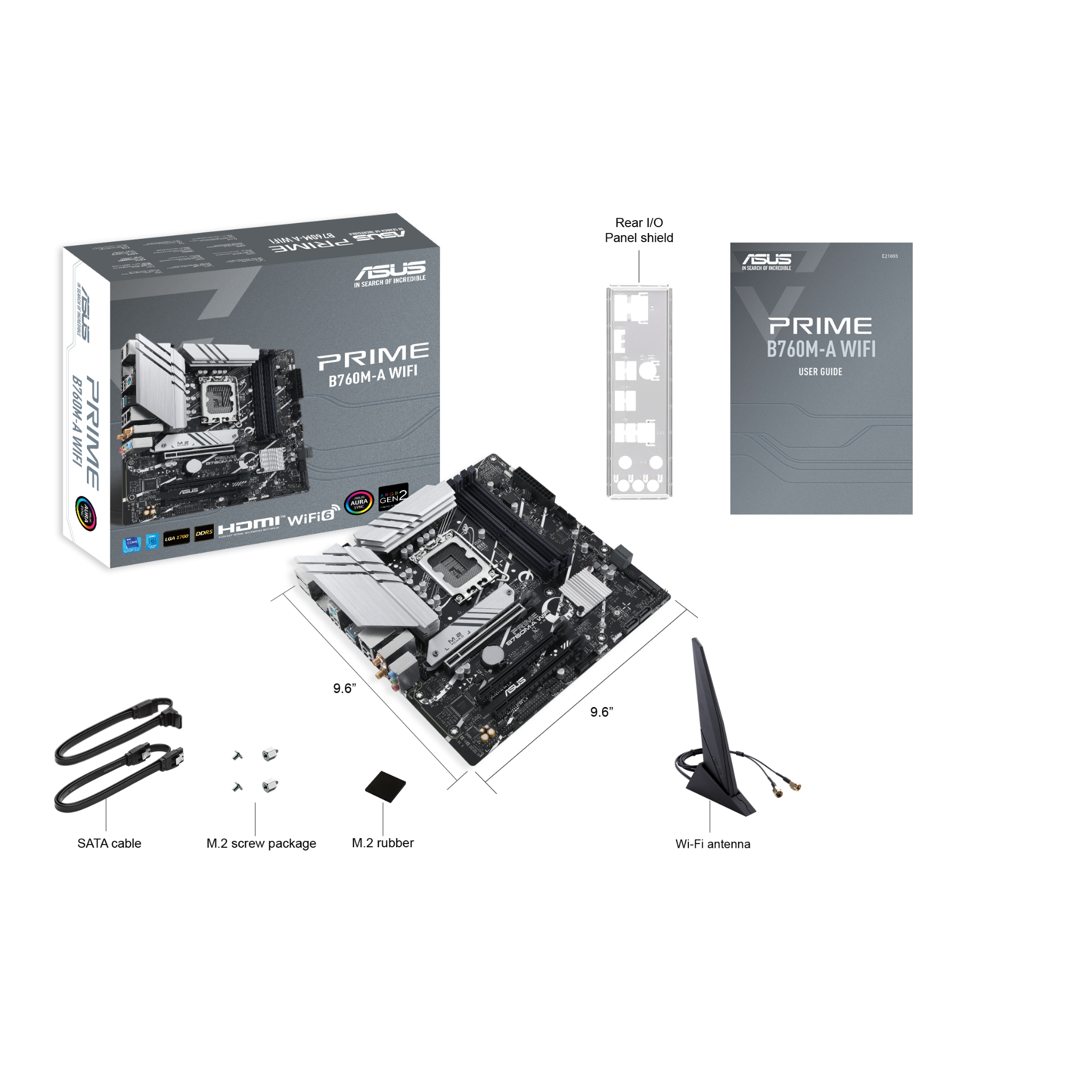

Accessories:

• Cables: 2 x SATA 6Gb/s cables
• Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD
• Documentation: 1 x User guide

Operating System:

• Windows® 11, Windows® 10 64-bit

Form Factor:

• mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
