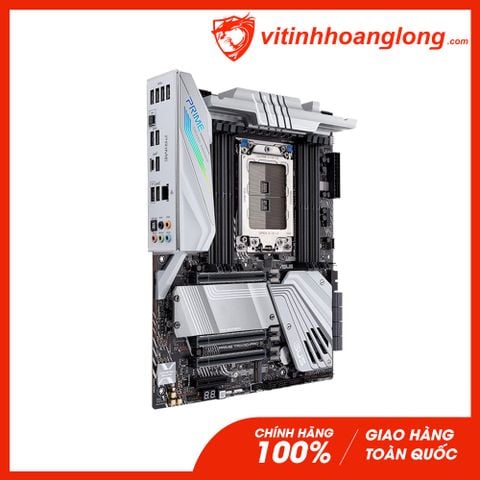

Mainboard Asus Prime TRX40-Pro S

Model

Prime TRX40-Pro

CPU hỗ trợ

AMD

Chipset

AMD TRX40

RAM hỗ trợ

8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

Khe cắm mở rộng

3^rd Gen AMD Ryzen^™ Threadripper^™ Series Desktop processors
3 x PCIe 4.0 x16 (x16/x16/x16) *
AMD TRX40 chipset
1 x PCIe 4.0 (x4 mode)

Ổ cứng hỗ trợ

3^rd Gen AMD Ryzen^™ Threadripper^™ Series Desktop processors :
2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
AMD TRX40 chipset :
1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
8 x SATA 6Gb/s port(s),

Cổng kết nối (Internal)

1 x Q_Code
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 with E key for Wi-Fi module
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x W_PUMP+ connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector) x With flexkey function
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x USB 3.2 Gen 2 front panel connector

Cổng kết nối (Back Panel)

1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack^™)
6 x USB 3.2 Gen 1 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS FlashBack^™ Button(s)

LAN / Wireless

Intel® I211-AT
ASUS Turbo LAN Utility
ASUS LAN Guard

Kích cỡ

ATX Form Factor ( 30.5 cm x 24.4 cm )
