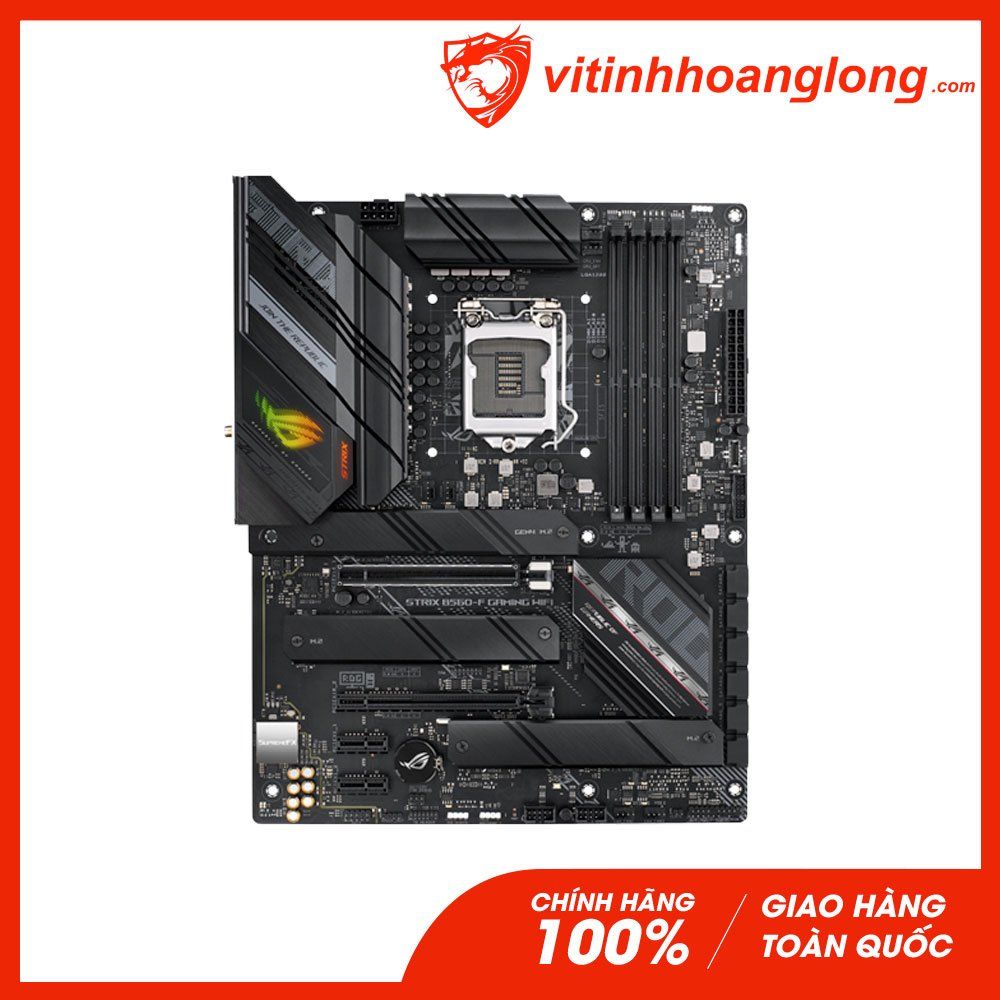

Mainboard Asus Rog Strix B560-F Gaming Wifi

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

ROG STRIX B560-F GAMING WIFI

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

Memory Channels:4DDR4 (Dual channel)

Max Memory Size:128GB

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Khe cắm mở rộng

1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4)

Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot(s)

- Intel® 11th processors support PCIe 4.0 x16 mode

- Intel®10th processors support PCIe 3.0 x16 mode

Intel® B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

2 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.

Intel® B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)**

6 x SATA 6Gb/s ports

Cổng kết nối (Internal)

1 x TB Header (for add-on TB card)

Cổng kết nối (Back Panel)

PS/2 Combo Port

VGA Port

HDMI Port

USB 3.1 Gen1

LAN Port

HD Audio Connectors

USB 2.0 Port

USB 3.1 Gen1

LAN / Wireless

LAN: 1 x Intel® 2.5Gb Ethernet
WIFI: Intel® Wi-Fi 6

Kích cỡ

ATX

30.5cm x 24.4cm
