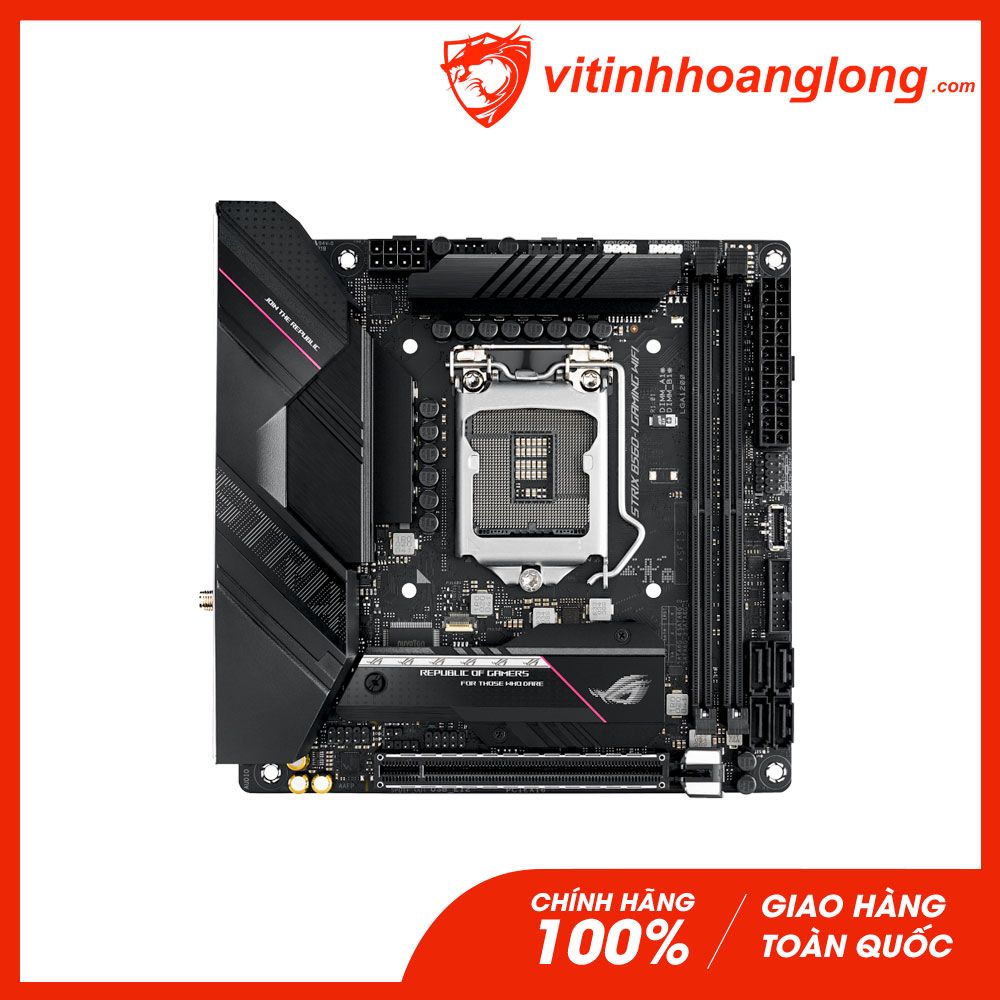

Mainboard Asus Rog Strix B560-I Gaming Wifi

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

ROG STRIX B560-I GAMING WIFI

CPU hỗ trợ

Hỗ trợ cho thế hệ thứ 10&11 Intel® Core Socket LGA1200

Chipset

B560

RAM hỗ trợ

2 x DDR4 DIMM Slots (tối đa 64GB)
Supports DDR4 5333(OC)/4800(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC) 3200(OC)/2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory

Khe cắm mở rộng

1 x PCI Express 4.0/3.0 x 16 Slot

Ổ cứng hỗ trợ

4 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal)

1 x 4-pin CPU Fan header(s)

1 x 4-pin AIO Pump header(s)

1 x 4-pin Chassis Fan header(s)

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

1 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

6 x USB 2.0 port(s) (5 x Type-A, 1 x Audio USB Type-C®)

1 x DisplayPort

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

LAN / Wireless

Intel® Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later

Kích cỡ

Mini ATX Form Factor: 17cm x 17cm)
