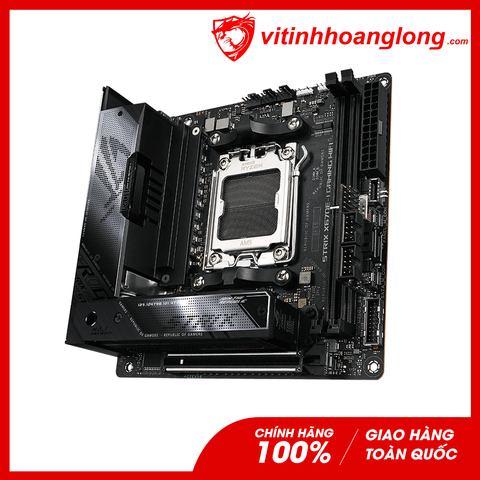

Mainboard Asus Rog Strix X670E-I Gaming Wifi

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

ROG STRIX X670E-I GAMING WIFI

CPU hỗ trợ

AMD

Chipset

AMD X670

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory

Khe cắm mở rộng

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot(s)

Ổ cứng hỗ trợ

Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2 connector (support(s) USB
Type-C^® )
1 x USB 3.2 Gen 1 header(s) support(s)
additional 2 USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x RTC Battery header
1 x Thermal Sensor header
1 x 2 pin Power_BTN header
2 x USB Type-C^® connectors to Install ROG
FPS-II card*
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports

Cổng kết nối (Back Panel)

2 x USB4^® port(s) with Intel^® JHL8540 USB4^®
controller (2 x USB Type-C^®)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1
port supports ROG STRIX HIVE)
3 x USB 2.0 port(s) (3 x Type-A)
1 x HDMI^® port
1 x Wi-Fi Module
1 x Intel^® I225-V 2.5Gb Ethernet port

LAN / Wireless

1 x Intel^® 2.5Gb Ethernet

Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Kích cỡ

Mini-ITX Form Factor
6.7 inch x 6.7 inch( 17cm x 17cm)
