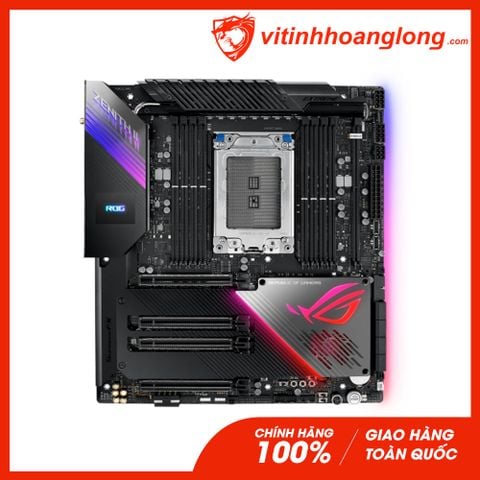

Mainboard Asus Rog Zenith II Extreme Alpha

Tham gia Cộng đồng Vi Tính Hoàng Long để nhận những ưu đãi thường xuyên chỉ áp dụng cho thành viên trong group.

Mainboard Asus Rog Zenith II Extreme Alpha

Tình trạng: Còn hàng

Mã sản phẩm: MASROGZENLIEXALP

Thương hiệu: Asus

Dòng sản phẩm: Mainboard

17,842,000₫

ĐẶC ĐIỂM

AMD TRX40 8 khe EATX

Thông số kỹ thuật

Bảo hành 36 tháng
Hàng chính hãng 100%
Bảo hành uy tín, chuyên nghiệp
Hỗ trợ trả góp 0% qua thẻ tín dụng
Giá luôn tốt nhất thị trường
Giá ưu đãi cho khách hàng doanh nghiệp
Hóa đơn, chứng từ đầy đủ
Thanh toán linh hoạt, đa dạng
Giao hàng toàn quốc

Đặt mua ngay Giao hàng tận nơi nhanh chóng Thêm vào giỏ Thêm vào giỏ để chọn tiếp Mua trả góp Thủ tục đơn giản

Chia sẻ trên Facebook
Chia sẻ trên Twitter
Chia sẻ trên Pinterest
Chia sẻ trên Linkedin
Thêm vào so sánh
Thêm vào yêu thích

Mainboard Asus Rog Zenith II Extreme Alpha

Model	ROG Zenith II Extreme Alpha
CPU hỗ trợ	Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors Supports CPU up to 64 cores
Chipset	AMD TRX40
RAM hỗ trợ	AMD Ryzen™ Threadripper™ Processors 8 x DIMM, Max. 256GB, DDR4 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Quad Channel Memory Architecture
Multi-GPU Support	Supports NVIDIA® 3-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology
Khe cắm mở rộng	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)
Lưu trữ	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)1 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)2 Support Raid 0, 1, 10 AMD TRX40 chipset : 4 x SATA 6Gb/s port(s), ASMedia® SATA 6Gb/s controller : 4 x SATA 6Gb/s port(s),
LAN / Wireless / Bluetooth	Intel® I211-AT, 1 x Gigabit LAN Controller(s) Aquantia AQC-107 10G Anti-surge LANGuard ROG GameFirst V TechnologyIntel® Wi-Fi 6 AX200 Wi-Fi 802.11 ax, Bluetooth® 5.0 Supports dual band frequency 2.4/5 GHz Supports 2×2 MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed Bluetooth® 5.0
Âm Thanh	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output 108 dB SNR recording input – ESS® ESS9018Q2C Audio Feature : – SupremeFX Shielding™ Technology – Sonic Studio III + Sonic Studio Virtual Mixer – DTS® Sound Unbound – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. – Sonic Radar III
USB	3rd Gen AMD Ryzen™ Threadripper™ Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) AMD TRX40 chipset : 2 x USB 3.2 Gen 2 front panel connector port(s) AMD TRX40 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A+1 x Type-C) AMD TRX40 chipset : 3 x USB 2.0 port(s) ASMedia® USB 3.2 Gen 1 controller : 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) ASMedia® USB 3.2 Gen2x2 controller : 1 x USB 3.2 Gen 2×2 (up to 20Gbps) port(s) (1 at back panel, , Type-C)
Các tính năng độc quyền của ROG	Clear CMOS button ROG CPU-Z ROG Aura – Aura Lighting Control – Aura RGB Strip Headers Extreme Engine Digi+ : – Infineon TDA21472 Power Stage – 10K Black Metallic Capacitors ROG Extreme OC kit : – OptiMem III – ReTry button – Safe Boot button – Start button – Slow Mode – LN2 Mode – FlexKey Button ProbeIt UEFI BIOS features : – ROG SSD Secure Erase – Graphic Card Information Preview USB BIOS FlashBack™ ROG Patented Pre-mounted I/O Shield ROG Exclusive Software – Mem Tweakit – RAMCache III – GameFirst V – Sonic Radar III – Sonic Studio III + Sonic Studio Virtual Mixer ROG DIMM.2 module with heatsink ROG Aluminum heatsink cover
Tính năng đặc biệt	ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer’s Guardian: – DRAM Overcurrent Protection – 10K Black Metallic Capacitors – DIGI+ VRM – SafeSlot – ESD Guards on LAN, Audio,and USB ports LiveDash OLED 1.77 ” AURA : – Aura Lighting Control – Aura RGB Strip Headers – Addressable Gen 2 Header ASUS Exclusive Features : – AI Suite 3 – Ai Charger+ – Pre-mounted I/O Shield – ASUS EZ Flash 3 – ASUS C.P.R.(CPU Parameter Recall) – BIOS FlashBack™ Button – Clear CMOS Button ASUS Q-Design : – ASUS Q-Code – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) – ASUS Q-Slot – ASUS Q-DIMM – ASUS Q-Connector Digi+VRM MemOK! II Armoury Crate
Cổng kết nối ( I/O Phía sau)	1 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2×2 (up to 20Gbps) ports (Type-C) 4 x USB 3.2 Gen 1 blue 5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port
Cổng kết nối ( I/O bên trong)	2 x Aura RGB Strip Header 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 2 x W_PUMP+ connector 1 x WB_SENSOR 1 x 6-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x 4-pin EZ_PLUG Power connector(s) 1 x Front panel audio connector(s) (AAFP) 7 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 2 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 1 x RSVD Switch 1 x Start button 1 x FlexKey button 1 x FS Mode switch 1 x M.2_3 cold storage Switch 1 x Chipset Fan Header 1 x VRM_HS_FAN Header
BIOS	2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 7.1
Kích cỡ	Extended ATX Form Factor 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm )
Ghi chú	* When the M.2_2 on board is operating in PCIe mode,PCIE x16_4 will running at x4 mode When the M.2_3 on board is operating in PCIe x4 mode, SATA6G_E1-E4 will be disabled * Supports PCIE RAID configurations via onboard M.2 storages.
