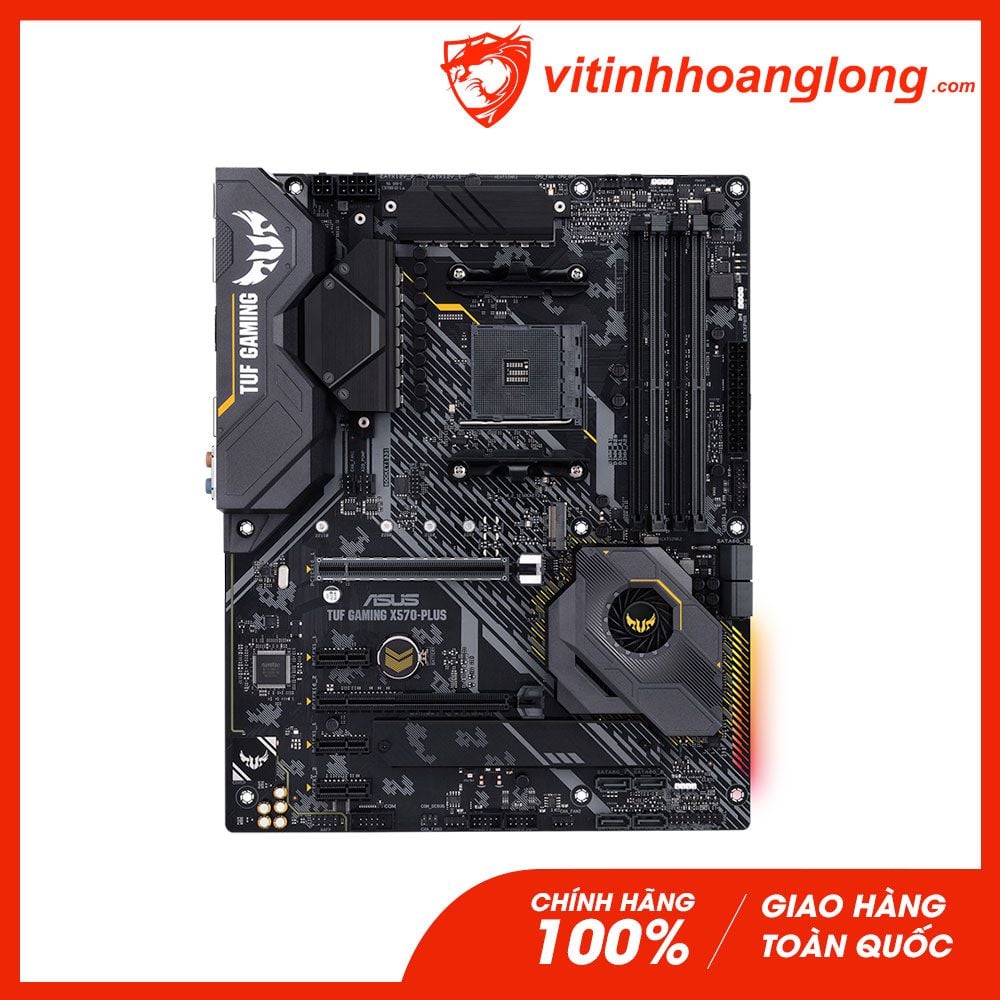

Mainboard Asus Tuf Gaming X570-Plus

Tình trạng: Còn hàng

Mã sản phẩm: MASTUFGX570PL

Thương hiệu: Asus

Dòng sản phẩm: Mainboard

5,440,000₫

ĐẶC ĐIỂM

AMD X570 4 khe ATX

Thông số kỹ thuật

Bảo hành 36 tháng
Hàng chính hãng 100%
Bảo hành uy tín, chuyên nghiệp
Hỗ trợ trả góp 0% qua thẻ tín dụng
Giá luôn tốt nhất thị trường
Giá ưu đãi cho khách hàng doanh nghiệp
Hóa đơn, chứng từ đầy đủ
Thanh toán linh hoạt, đa dạng
Giao hàng toàn quốc

Đặt mua ngay Giao hàng tận nơi nhanh chóng Thêm vào giỏ Thêm vào giỏ để chọn tiếp Mua trả góp Thủ tục đơn giản

Chia sẻ trên Facebook
Chia sẻ trên Twitter
Chia sẻ trên Pinterest
Chia sẻ trên Linkedin
Thêm vào so sánh
Thêm vào yêu thích

Mainboard Asus Tuf Gaming X570-Plus

Thương hiệu	Asus
Chủng loại	TUF GAMING X570-PLUS
CPU hỗ trợ	Socket AMD AM4 gen 2 và 3
Chipset	AMD X570
Hỗ trợ RAM	3rd Gen AMD Ryzen™ Processors 4 x DIMM
	Max. 128GB, DDR4 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors 4 x DIMM
	Max. 128GB, DDR4 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM
	Max. 128GB, DDR4 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU
Hỗ trợ Multi-GPU	3rd and 2nd Gen AMD Ryzen™ Processors AMD Ryzen™ 2nd Generation
Hỗ trợ Multi-GPU	Ryzen™ 1st Generation Processors Supports AMD CrossFireX™ Technology
Khe mở rộng	3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1
Chuẩn cắm ổ	3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242 /2260 /2280 /22110 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242 /2260 /2280 /22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242 /2260 /2280 /22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Âm thanh	Realtek® ALC S1200A 8-Channel High Definition Audio CODEC Audio Feature : – Exclusive DTS Custom for GAMING Headsets. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity – Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
Tính năng Workstation	Intel®C612 Chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel, , 2 at mid-board) / Intel®C612 Chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)6 x PCIe x 16 slot(s) / ASWM Enterprise /ASUS Dr. Power / 12K hours Capacitors / ProCool Power Connector / Q-Code Logger / USB BIOS Flashback / ASUS PIKE SAS upgrade kit(Optional) / ASMB8-iKVM Remote Management Tool
Cổng kết nối	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
Cổng kết nối trên main	2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Hệ điều hành hỗ trợ	Windows® 10 64-bit
Phụ kiện	User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s)

Xem thêm

Thương hiệu	Asus
Chủng loại	TUF GAMING X570-PLUS
CPU hỗ trợ	Socket AMD AM4 gen 2 và 3
Chipset	AMD X570
Hỗ trợ RAM	3rd Gen AMD Ryzen™ Processors 4 x DIMM
	Max. 128GB, DDR4 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors 4 x DIMM
	Max. 128GB, DDR4 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM
	Max. 128GB, DDR4 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU
Hỗ trợ Multi-GPU	3rd and 2nd Gen AMD Ryzen™ Processors AMD Ryzen™ 2nd Generation
Hỗ trợ Multi-GPU	Ryzen™ 1st Generation Processors Supports AMD CrossFireX™ Technology
Khe mở rộng	3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1
Chuẩn cắm ổ	3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242 /2260 /2280 /22110 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242 /2260 /2280 /22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242 /2260 /2280 /22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Âm thanh	Realtek® ALC S1200A 8-Channel High Definition Audio CODEC Audio Feature : – Exclusive DTS Custom for GAMING Headsets. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity – Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
Tính năng Workstation	Intel®C612 Chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel, , 2 at mid-board) / Intel®C612 Chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)6 x PCIe x 16 slot(s) / ASWM Enterprise /ASUS Dr. Power / 12K hours Capacitors / ProCool Power Connector / Q-Code Logger / USB BIOS Flashback / ASUS PIKE SAS upgrade kit(Optional) / ASMB8-iKVM Remote Management Tool
Cổng kết nối	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
Cổng kết nối trên main	2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Hệ điều hành hỗ trợ	Windows® 10 64-bit
Phụ kiện	User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s)
