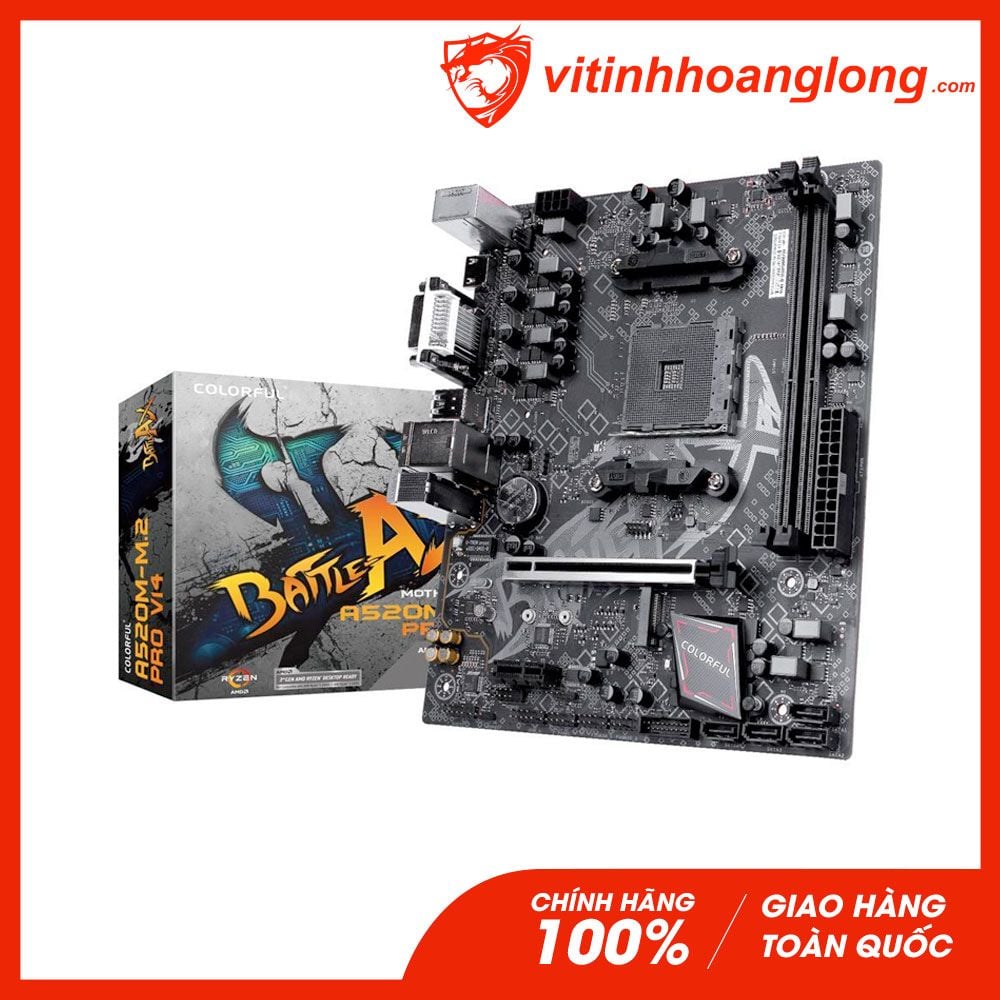

Mainboard Colorful Battle-Ax A520M-M.2 Pro V14

Motherboard Series

AMD chipset,BATTLE-AX series

Chipset

AMD A520

Processor

Supports AMD AM4 socket Ryzen™ 3000 series Processors

Memory

2 DIMM slots，support dual channel DDR4-3200(OC)/3000(OC)/2800(OC)/2666/2400/2133 MHz

Graphics Support

1*PCI Express3.0X16 slot

SATA Ports

4*SATA3.0 6Gb/s ports

Board I/O

1*PS2 port;1*HDMI port,1*DVI port,1*VGA port; 2*USB 2.0 ports,4*USB 3.2 Gen1 Type-A ports; 1*RJ45 1000M LAN; 3*audio ports; （onboard： 2*USB2.0 header,1*USB3.2 Gen1 header）

Expansion Slots

1*PCI Express3.0X1 slot.1*M.2 slot;

BIOS

128M UEFI

Power Management

support 95W processors

Hardware Monitor

CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring

LAN

1000M LAN，Provides 10/100/1000Mb Ethernet

Audio

ALC662 6-channel audio chipset

Configuration

225 x 192 mm mATX

Other Features

The two USB ports under the PS2 port support the charging function under the shutdown state, which can be turned off with JPS jumper!
