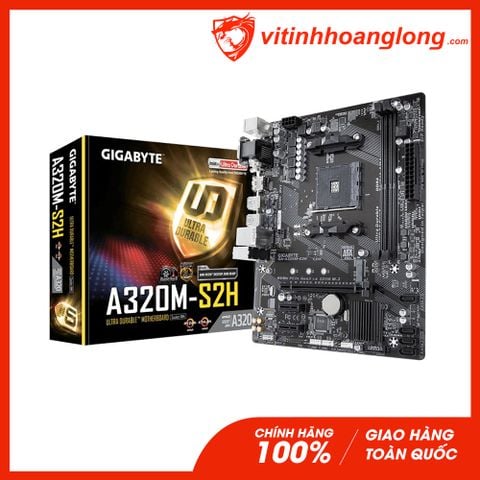

Mainboard Gigabyte A320M-S2H

Tình trạng: Còn hàng

Mã sản phẩm: MGIGAA320MS2H

Thương hiệu: Gigabyte

Dòng sản phẩm: Mainboard

1,100,000₫

ĐẶC ĐIỂM

AMD A320 2 khe M-ATX

Mainboard Gigabyte A320M-S2H

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	GA-A320M-S2H
CPU hỗ trợ	AMD
Chipset	AMD A320
RAM hỗ trợ	2 x DDR4 memory slots, support up to 32GB DDR4 2667/2400/2133 MHz
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x1 slots
Ổ cứng hỗ trợ	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
Cổng kết nối (Back Panel)	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
LAN / Wireless	Realtek® GbE LAN chip (10/100/1000 Mbit)
Kích cỡ	Micro ATX Form Factor; 24.4cm x 19.5cm
