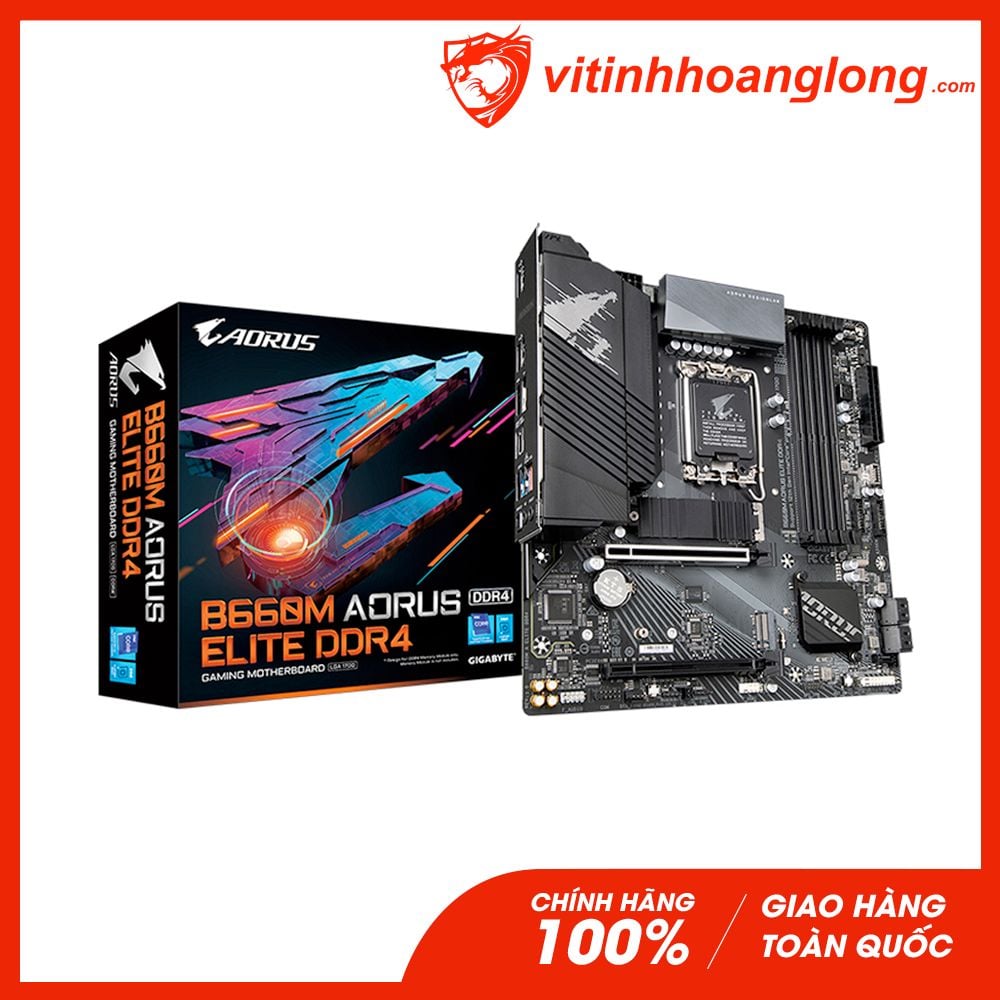

Mainboard Gigabyte B660 AORUS ELITE DDR4

Tổng quan

Socket

LGA1700 socket

Chipset

Intel® B660 Express Chipset

CPU (hỗ trợ tối đa)

Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

OS hỗ trợ

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm

Bộ Nhớ

Bộ nhớ RAM tối đa

128GB

Số khe cắm

4

Kênh bộ nhớ

Dual

RAM

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules

Đồ Họa và Âm Thanh

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• Support for S/PDIF Out

Card đồ họa tích hợp

• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.0 version and HDCP 2.3.
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• * Support for DisplayPort 1.2 version and HDCP 2.3

Cổng Kết Nối

Các cổng khác

1 x optical S/PDIF Out connector

RJ45

1 x RJ-45 port

USB 2.0

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

USB 3.2

• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 2 x USB 3.2 Gen 1 ports, available through the internal USB header
• 4 x USB 3.2 Gen 1 ports on the back panel

USB-C

2 x USB Type-C® ports with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)

Cổng Audio

2 x audio jacks

HDMI

1 x HDMI 2.0 port

Display Port

1 x DisplayPort

Kết Nối I/O Bên Trong

SATA III 6Gb/s

4 x SATA 6Gb/s connectors

M.2 SLOT

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)

PCI

2 x PCI Express x1 slots

PCI-EX16

1 x PCI Express x16 slot, running at x16 (PCIEX16)

Tính Năng Khác

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring (Bộ theo dõi phần cứng)

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Tính năng đặc biệt khác

• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• EasyTune
• Fast Boot
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

RAID

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
