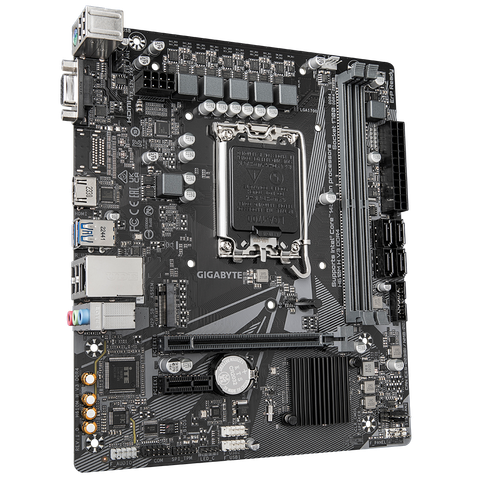

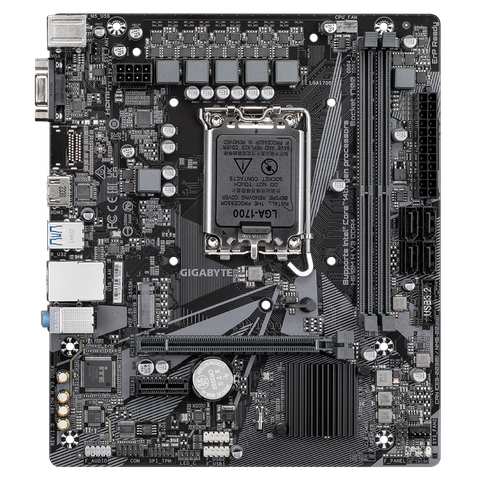

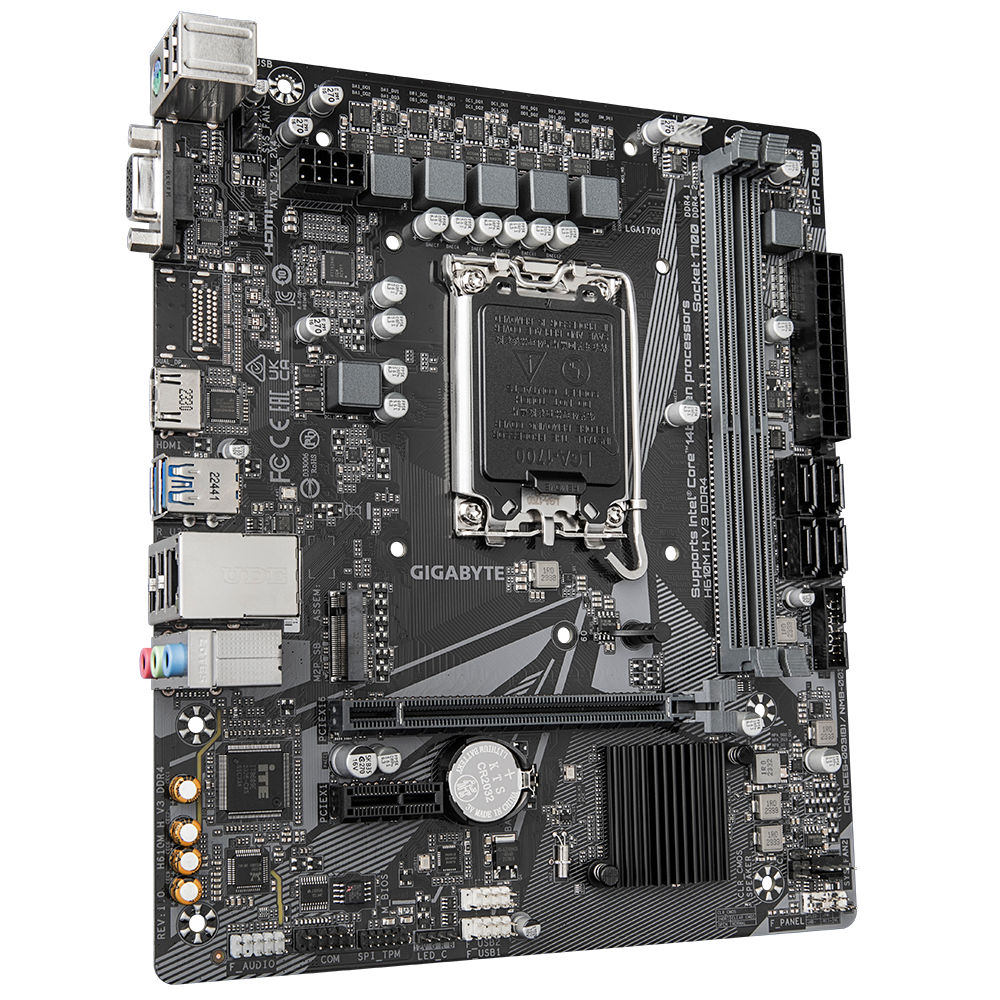

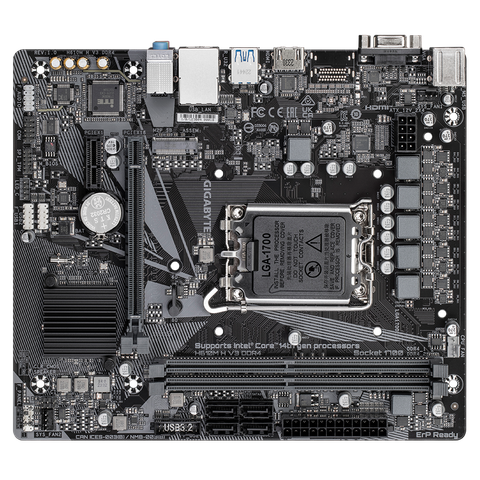

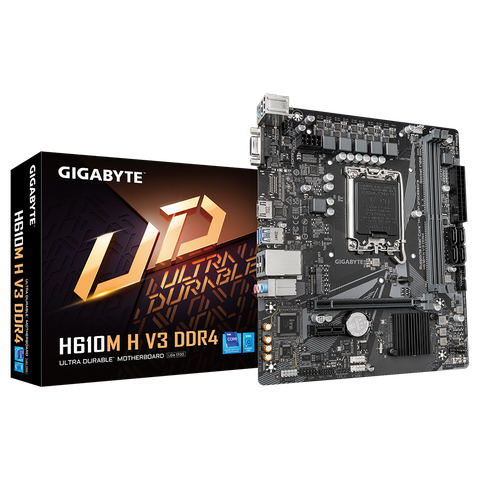

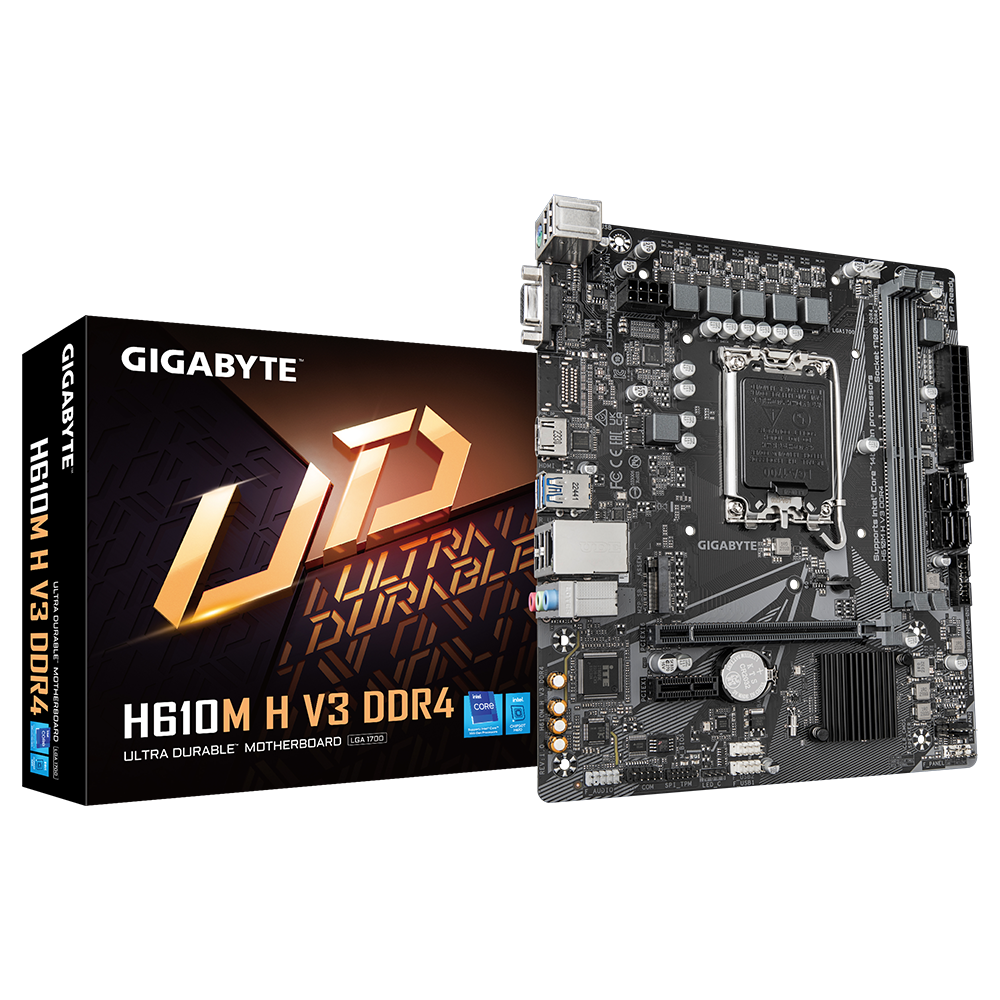

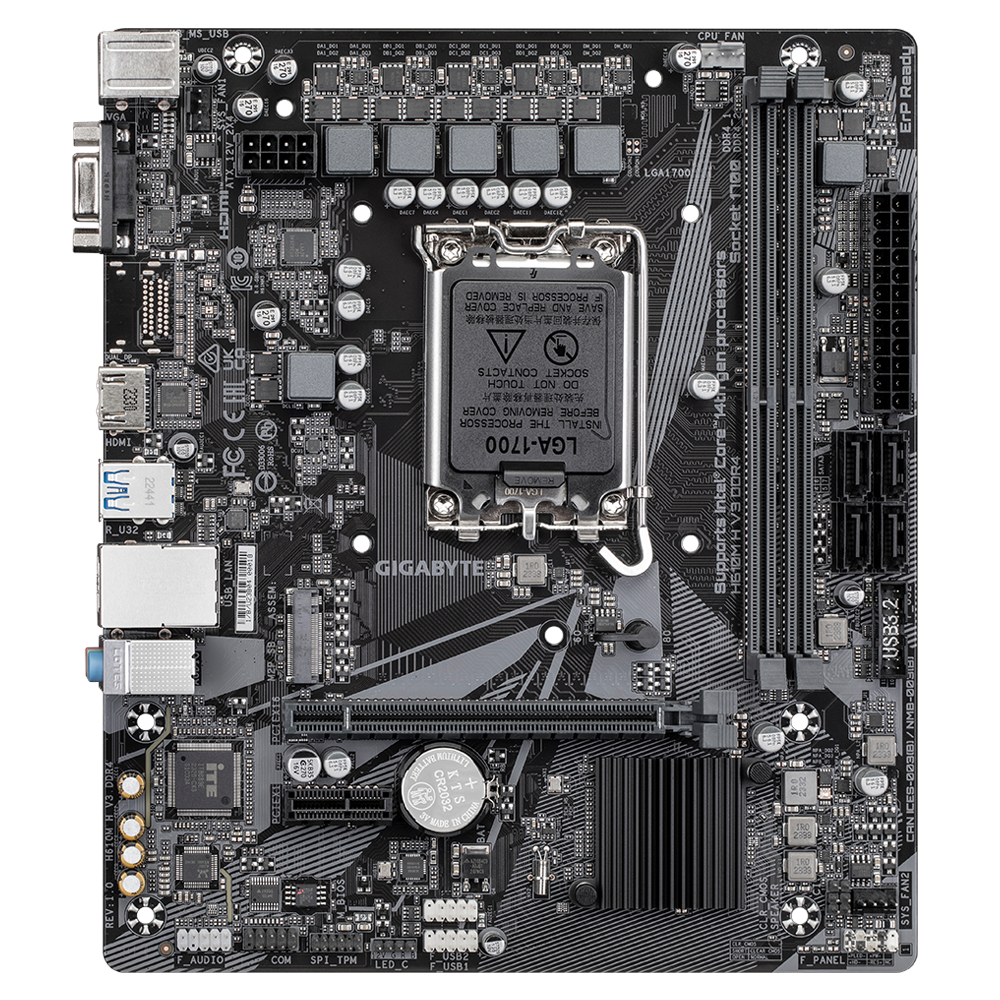

Mainboard Gigabyte H610M H V3 DDR4 (rev. 1.0)

Mainboard Gigabyte H610M H V3 DDR4 (rev. 1.0)

Tình trạng: Còn hàng

Mã sản phẩm: Đang cập nhật

Thương hiệu: Gigabyte

Dòng sản phẩm: Mainboard

1,650,000₫

Thông số kỹ thuật

Thêm vào giỏ

Chia sẻ trên Facebook
Thêm vào so sánh
Thêm vào yêu thích

Cam kết mua hàng

Lỗi là đổi mới ngay lập tức trong 3 tháng

Giao hàng siêu tốc trong 4h nội thành (HCM, Đồng Nai, Bình Dương)

Hàng chính hãng new 100%

Giao hàng miễn phí toàn quốc (khi mua full bộ)

Mô tả

BẢO HÀNH: 36 THÁNG

⚙ THÔNG SỐ CƠ BẢN:

Socket: LGA1700
Kích thước: Micro ATX
Khe cắm RAM: 2 khe DDR4

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with CPU. (Please refer to "CPU Support List" for more information.)
Chipset	Intel® H610 Express Chipset.
Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC and non-ECC Un-buffered DIMM memory modules. Support for Extreme Memory Profile (XMP) memory modules. (Please refer to "Memory Support List" on GIGABYTE's website.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port (1920x1200@60 Hz), 1 x HDMI port (4096x2160@60 Hz). Support for HDMI 2.1 and HDCP 2.3.
Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1.
Storage Interface	Chipset: 1 x M.2 connector (PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors.
USB	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available via internal header), 4 x USB 2.0/1.1 ports on the back panel. Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available via internal headers.
Internal I/O Connectors	1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x M.2 connector, 4 x SATA 6Gb/s connectors, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, etc.

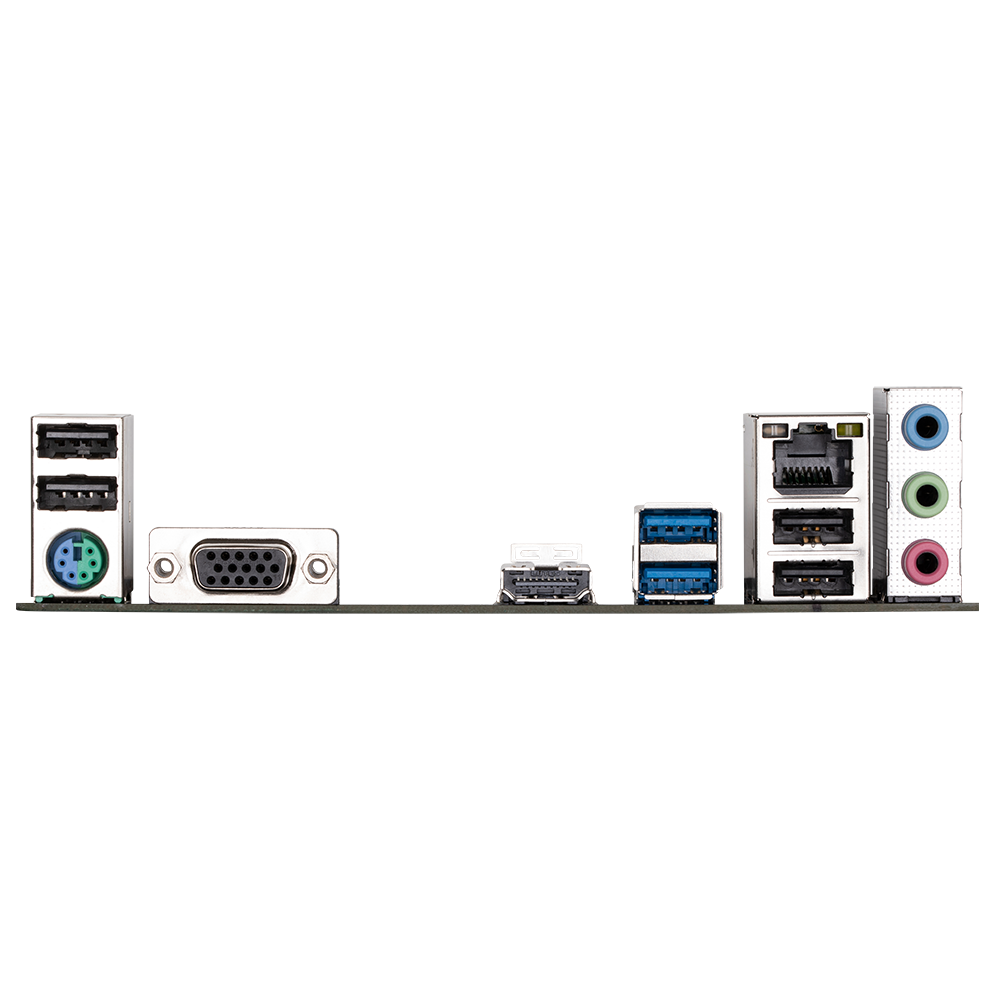

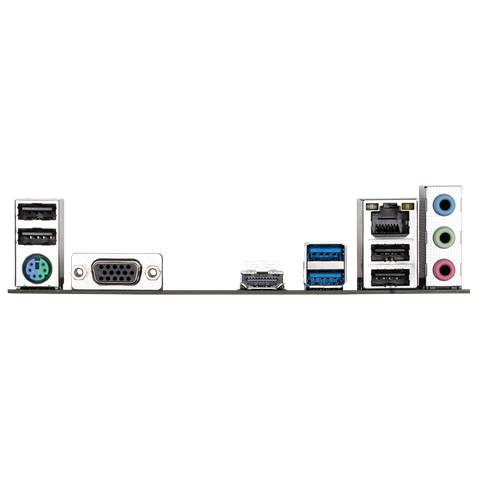

Back Panel Connectors	1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, and fan speed detection. Water cooling flow rate detection, fan fail warning, fan speed control.
BIOS	1 x 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
Unique Features	Support for APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash.
Bundled Software	Norton® Internet Security (OEM version), LAN bandwidth management software.
Operating System	Support for Windows 11 64-bit and Windows 10 64-bit.
Form Factor	Micro ATX Form Factor; 22.3cm x 19.3cm
