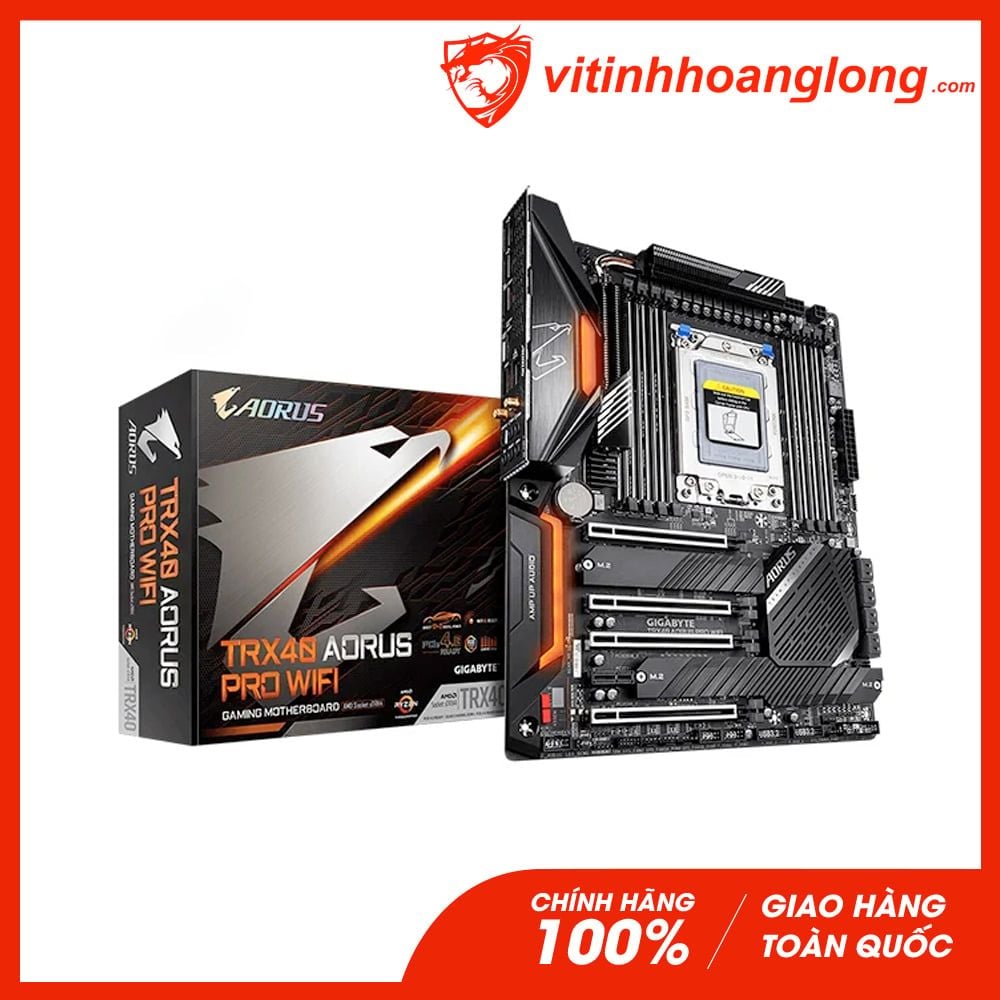

Mainboard Gigabyte TRX40 AORUS PRO WIFI

Chipset

1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
2. Quad Channel memory architecture
3. Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

1. Realtek^® ALC4050H codec+ ALC1220-VB codec
2. Support for DTS:X^® Ultra
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.0
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
3. 1 x PCI Express x1 slot
   (All of the PCI Express slots conform to PCI Express 4.0 standard.)

• Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
• Support for NVIDIA^® Quad-GPU SLI™ and3-Way/2-Way NVIDIA^® SLI™ technologies

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)

1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
2. 8 x SATA 6Gb/s connectors

1. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 1 x USB Type-C™ port with USB 3.2 Gen 2/Gen 1 support, available through the internal USB header
3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 2 x system fan headers
7. 4 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 3 x M.2 Socket 3 connectors
11. 8 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C™ header, with USB 3.2 Gen 1/Gen 2 support
15. 2 x USB 3.2 Gen 1 headers
16. 2 x USB 2.0/1.1 headers
17. 1 x GIGABYTE add-in card connector
18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
19. 2 x temperature sensor headers
20. 1 x Clear CMOS jumper

1. 4 x USB 2.0/1.1 ports
2. 1 x Q-Flash Plus button
3. 5 x USB 3.2 Gen 2 Type-A ports (red)
4. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
5. 1 x RJ-45 port
6. 2 x SMA antenna connectors (2T2R)
7. 1 x optical S/PDIF Out connector
8. 5 x audio jacks

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   RGB Fusion
   Smart Backup
   Smart Keyboard
   Smart Survey
   System Information Viewer
   USB Blocker
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install

1. Norton^® Internet Security (OEM version)
2. cFosSpeed
3. XSplit Gamecaster + Broadcaster (12 months license)

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
