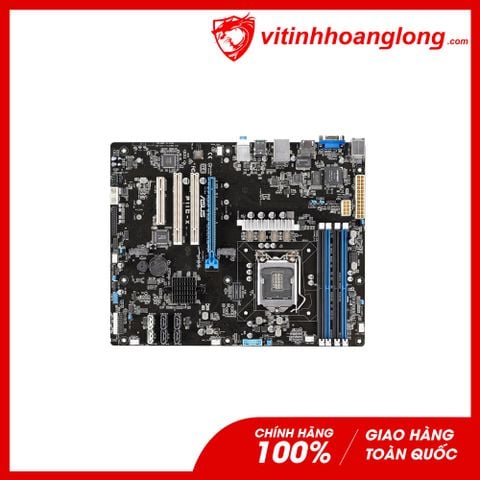

Mainboard Server Asus P11C-X/AUDIO socket 1151

Hãng sản xuất

Asus

Chủng loại

P11C-X/AUDIO

CPU hỗ trợ

1 x Socket LGA1151

Intel® Xeon® processor E-2100 family(95W)

Intel® Core™ i3 processors

Intel® Pentium™ processors

Intel® Celeron™ processors

Chipset

Intel® C242 Chipset

Bộ nhớ trong

Total Slots : 4 (2-channel)

Capacity : Maximum up to 64GB UDIMM

Memory Type : DDR4 2666/2400 UDIMM non ECC and with ECC

Memory Size : 16GB, 8GB, 4GB

VGA onboard

Aspeed AST2510 with 64MB VRAM

Âm thanh

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC

Khe mở rộng

Total Slot : 4

Slot Location 3 : PCI-E x8 (Gen3 X4 Link)

Slot Location 4 : PCI 32bit/33MHz

Slot Location 5 : PCI 32bit/33MHz

Slot Location 6 : PCI-E x16 (Gen3 X16 Link)

Chuẩn lưu trữ

SATA Controller :

Intel® C242 Chipset

6 x SATA3 6Gb/s ports + 2 x M.2 connector

Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)

(Support Software RAID 0, 1, 5, 10 )

SAS Controller : (tùy chọn thêm)

ASUS PIKE II 3008-8i 8-port SAS 12G RAID card

ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

Cổng giao tiếp

1 x PS/2 Keyboard/ Mouse Port

2 x USB 3.1

2 x USB 3.0

2 x USB 2.0

1 x VGA Port (onboard Aspeed AST2510)

2 x LAN Ports

3 x Audio Jacks (onboard Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC)

Công nghệ tích hợp

ASUS Control Center

Kích thước

ATX (12"x9.6", 305mm x 244mm)

Phụ kiện đi kèm
