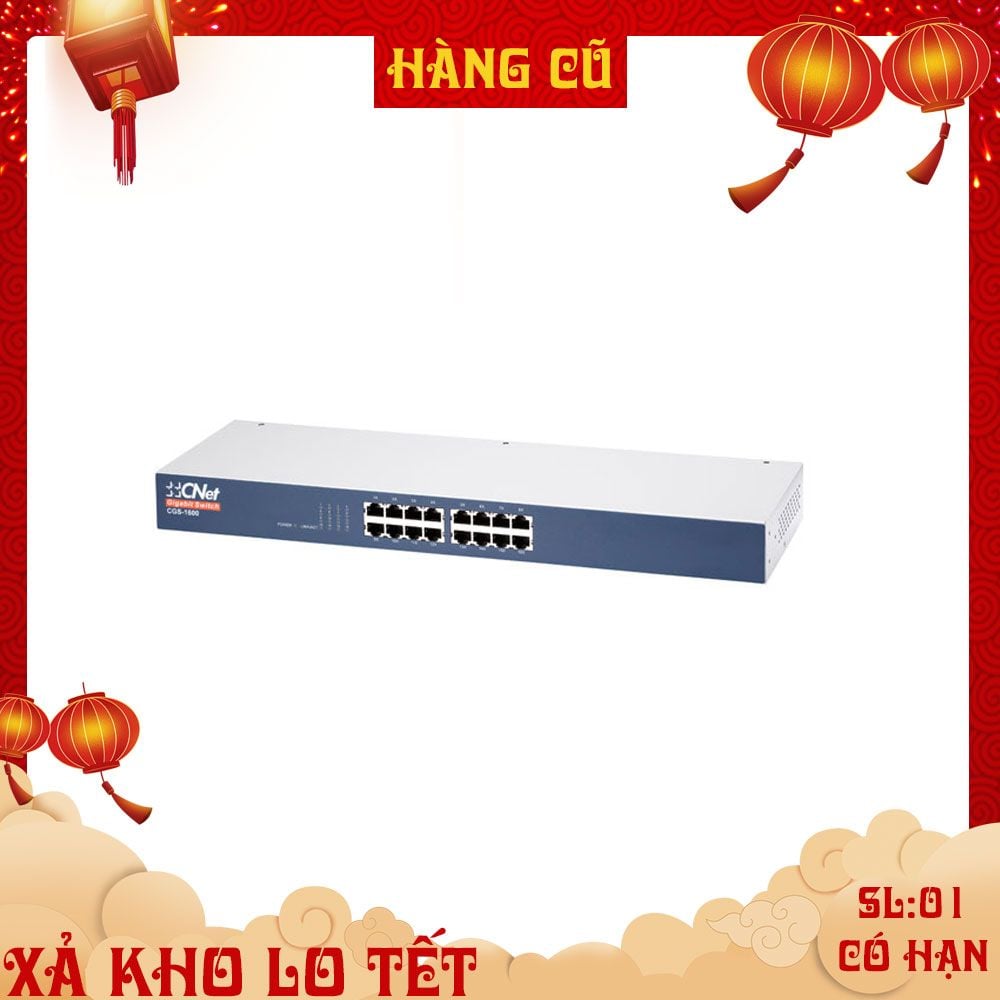

Thiết bị chia mạng Switch 16 Port 1G CNET CGS-1600 cũ

Model

CGS-1600

Standards

• IEEE 802.3: 10BASE-T
• IEEE 802.3u: 100BASE-TX
• IEEE 802.3ab: 1000BASE-T
• IEEE 802.3x: Flow-control support

Ports

• Sixteen 10/100/1000 Base-T TP Copper Ports

Media Support

• 10BASE-T: Category 3, 4 or 5 TP
• 100BASE-TX/1000BASE-T: Category 5 TP

Bandwidth

• 1000BASE-T: 10/20/100/200/2000Mbps

Forwarding/Filtering Rate

• 14880 packets/second per port @ 10Mbps maximum
• 148800 packets/second per port @ 100Mbps maximum
• 1488000 packets/second per port @ 1000Mbps maximum

Auto-MDIX

• All TP ports support Auto-MDI/MDI-X Functions

LED Indicators

• One (1) for Power
• One (1) per port for Link/ACT: Orange for 1000Mbps; Green for 10/100Mbps

Power Supply

• Internal full range switching power supply
• Input voltage:100 ~ 240 +-10%V AC 50/60 Hz

Power Consumption

• 20Watts

Internal FAN

• x 1

Environment

• Operating Temperature: 0° ~ 40° C (32° ~ 113° F)
• Storage Temperature:-20° ~ 80° C (-4° ~ 158° F)
• Humidity: 10% ~ 90% Non-condensing

Certifications

• FCC , CE

Dimensions

• 442 x 185 x 44mm (17.40 x 7.28 x 1.73 inches)
