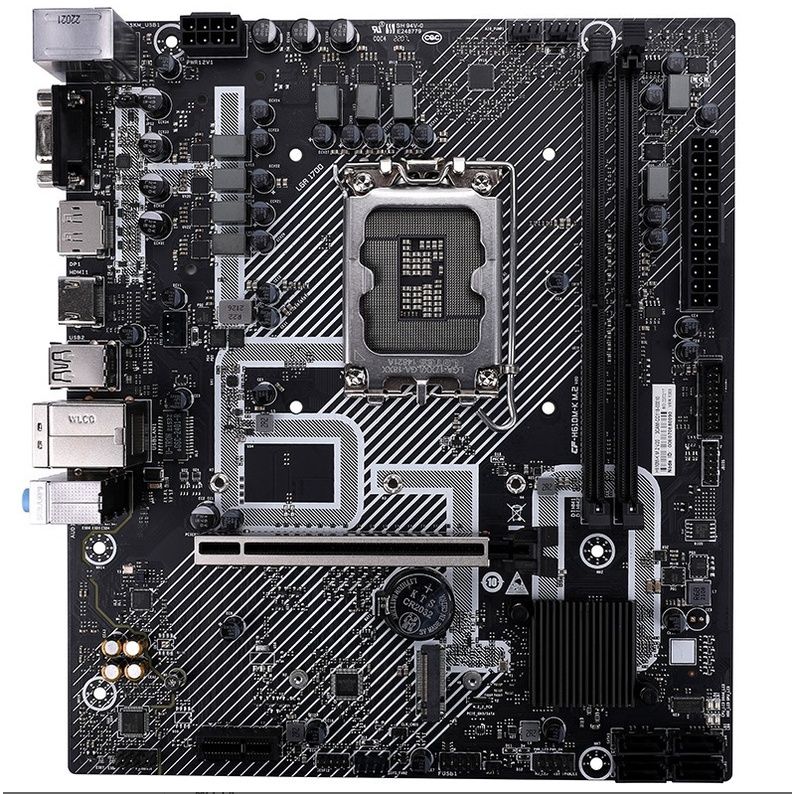

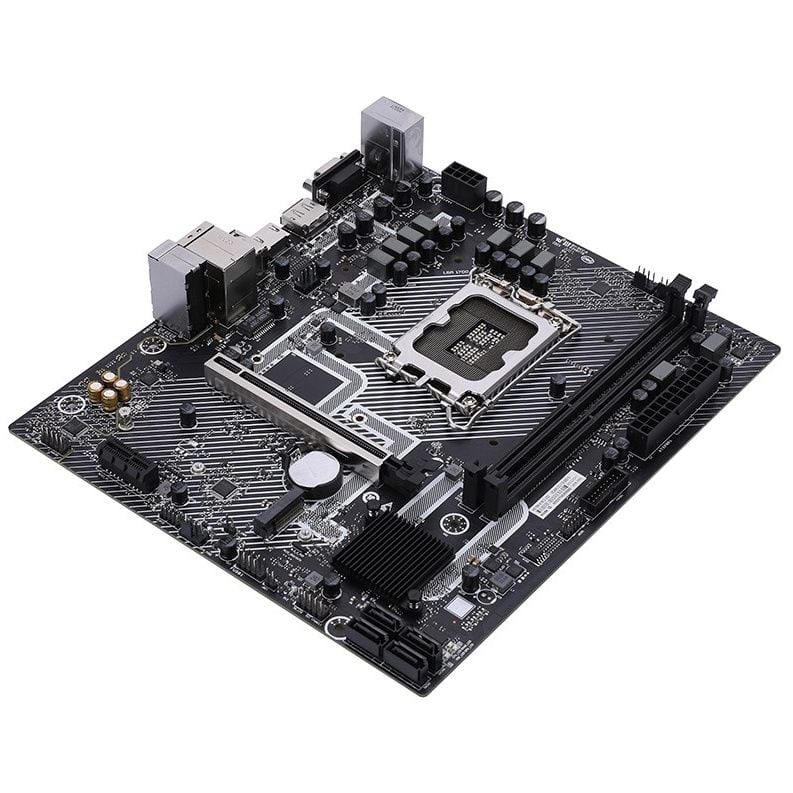

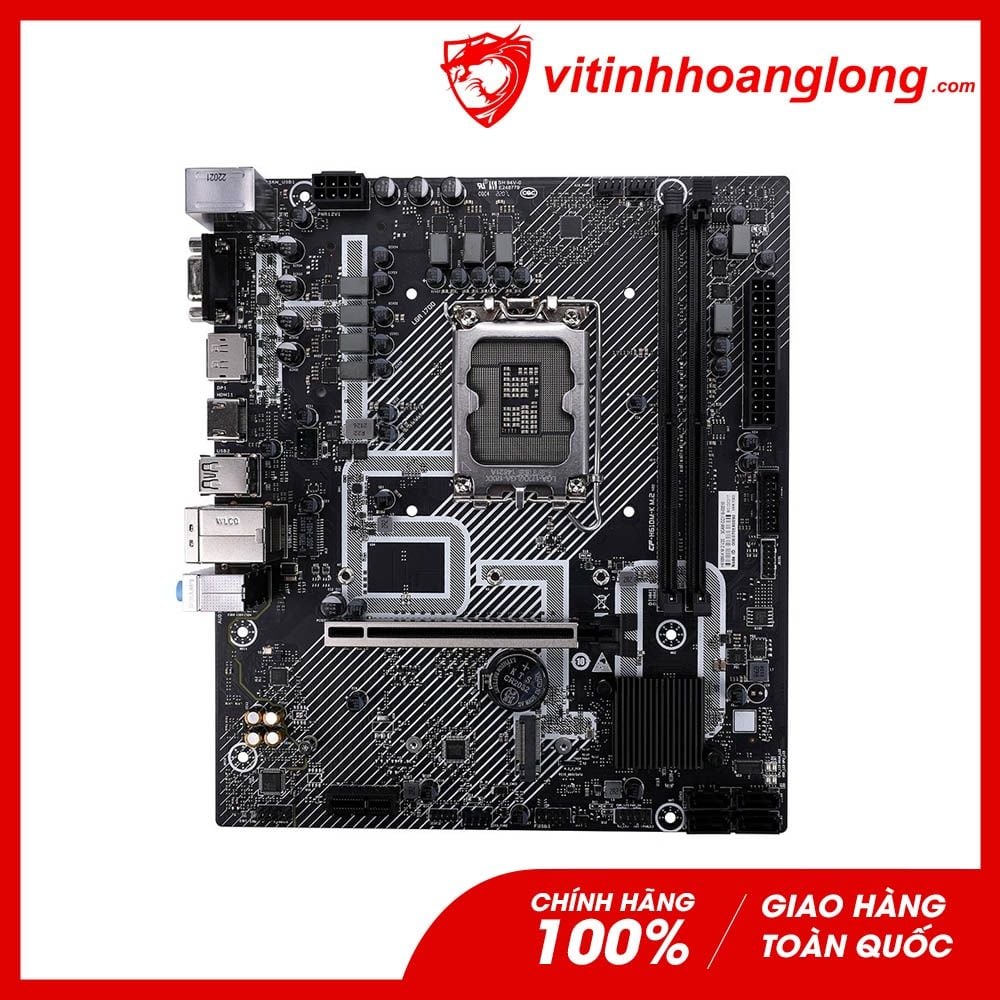

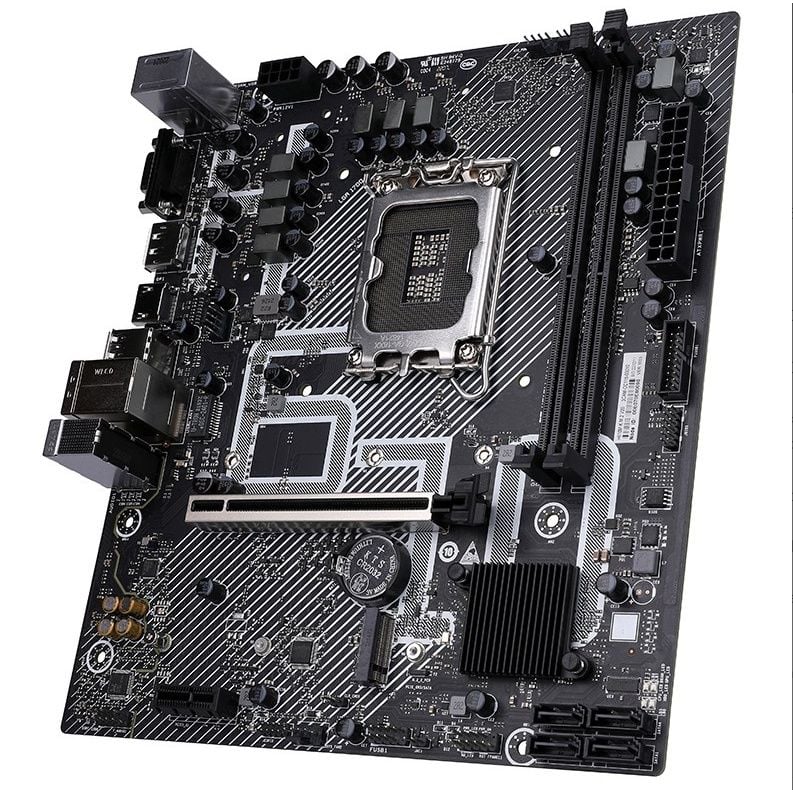

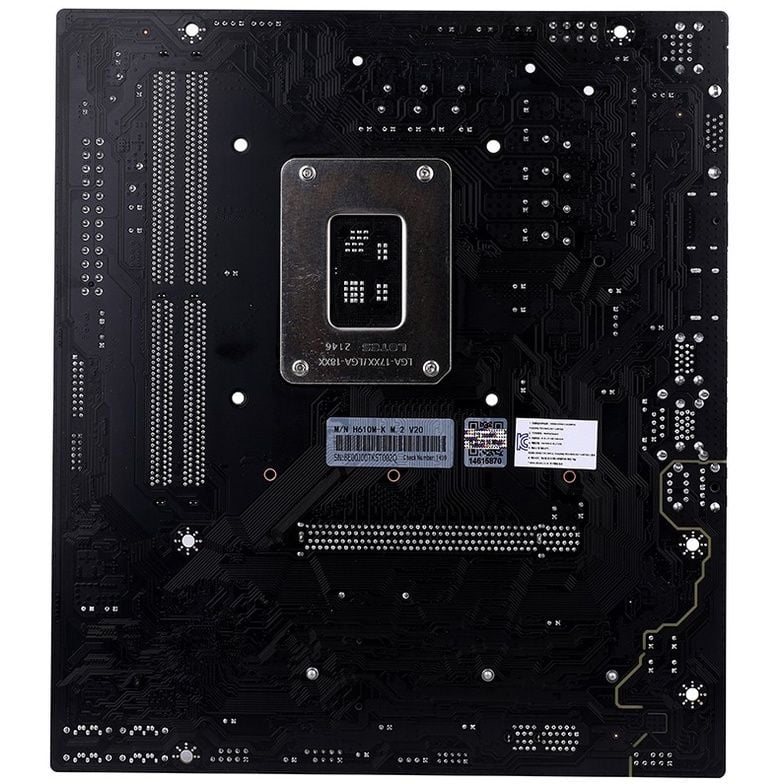

Mainboard Colorful H610M-K M.2 V20

Tình trạng: Còn hàng

Mã sản phẩm: MCLFH610MKV20

Thương hiệu: Colorful

Dòng sản phẩm: Mainboard

1,960,000₫

ĐẶC ĐIỂM

Intel H610 2 khe M-ATX

Mạch chính vi tính | Mainboard Colorful H610M-K M.2 V20 - Hãng Chính hãng - Vi Tính Hoàng Long

Motherboard series	Colorful
chipset	Intel H610
CPU support	Support Intel LGA1700 12th generation series processors
memory support	Provides 2 memory slots, a single memory supports a maximum capacity of 32GB, the total memory capacity supports a maximum capacity of 64G, and supports 3200/3000/2800/2666/2400 MHz dual-channel memory.
Graphics card support	1 PCI Express 4.0 x 16 slot
storage interface	4*SATA3.0 6Gb/s interface
Extension ports	I/O: 1 HDMI interface, 1 DP display interface and 1 VGA interface, 4 USB 2.0 interfaces, 2 USB 3.2 Gen 1 interfaces, 3-hole audio interface, Gigabit network interface; Onboard: 1 USB 2.0 expansion header, 1 USB 3.2 Gen 1 Type-A expansion header, 1 CPU fan header, 2 system fan headers, 1 water pump header
Expansion slot	1 PCI Express 4.0 x 16 slot, 1 PCI Express 3.0x 1 slot

Kích thước: M-ATX
Model:H610M-D
Socket:LGA 1700
Số khe RAM: 2 (DDR4)
LAN: 1000Mbit LAN
Series Colorful
Chipset Intel H610
Processor Supports 12th Gen Intel® Core™ Processors (Socket 1700)
Memory 2 DIMM slots，support dual channel DDR4-3200/3000/2800/2666/2400 MHz ;
Graphics Support 1*PCI Express 4.0 x 16 slot
SATA Ports 4*SATA3.0 6Gb/s ports

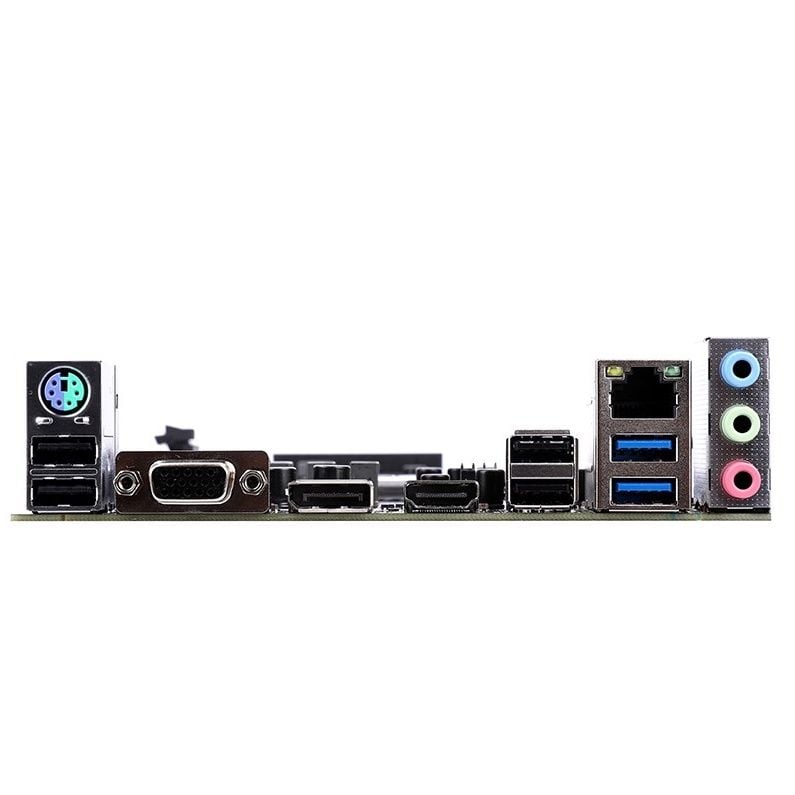

Board I/O 1*HDMI port,1*VGA port; 4*USB 2.0 ports,2*USB 3.2 Gen1 ports; 3*audio ports;
Expansion Slots 1*PCI Express 4.0×16 slot,1*PCI Express3.0X1 slot,1*M.2 slot;
BIOS 128M UEFI
Hardware Monitor CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring
LAN 1000Mbit LAN
Audio 6-Channel High Definition audio
Configuration 235mm x 205mm,M-ATX

Xem thêm

Motherboard series	Colorful
chipset	Intel H610
CPU support	Support Intel LGA1700 12th generation series processors
memory support	Provides 2 memory slots, a single memory supports a maximum capacity of 32GB, the total memory capacity supports a maximum capacity of 64G, and supports 3200/3000/2800/2666/2400 MHz dual-channel memory.
Graphics card support	1 PCI Express 4.0 x 16 slot
storage interface	4*SATA3.0 6Gb/s interface
Extension ports	I/O: 1 HDMI interface, 1 DP display interface and 1 VGA interface, 4 USB 2.0 interfaces, 2 USB 3.2 Gen 1 interfaces, 3-hole audio interface, Gigabit network interface; Onboard: 1 USB 2.0 expansion header, 1 USB 3.2 Gen 1 Type-A expansion header, 1 CPU fan header, 2 system fan headers, 1 water pump header
Expansion slot	1 PCI Express 4.0 x 16 slot, 1 PCI Express 3.0x 1 slot
