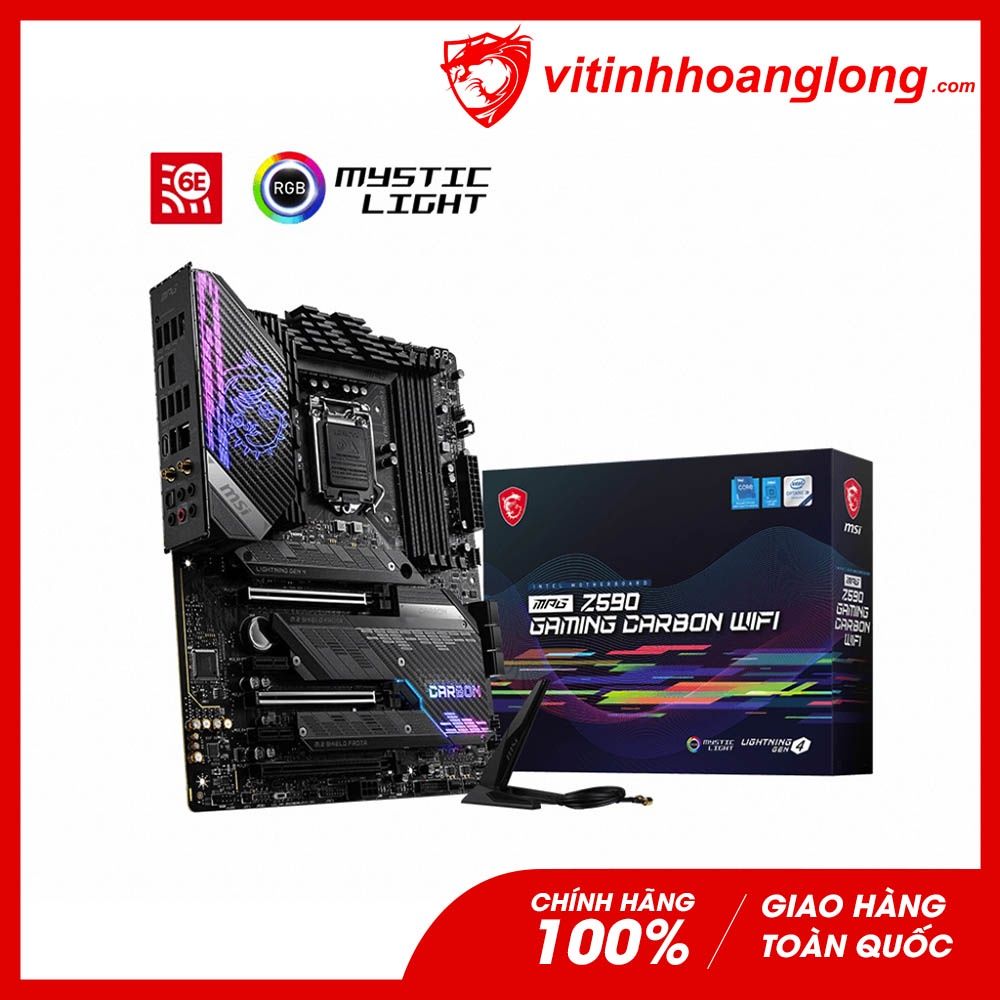

Mainboard MSI MPG Z590 Gaming Carbon Wifi

Tên Hãng

MSI

Model

Z590 GAMING CARBON WIFI

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Khe cắm mở rộng

3x PCIe x16 slots
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
PCI_E1 & PCI_E3 slots (From CPU)
Support PCIe 4.0 for 11th Gen Intel® CPU
Support PCIe 3.0 for 10th Gen Intel® CPU
PCI_E5 slot (From Z590 Chipset)
Supports PCIe 3.0
2x PCIe 3.0 x1 slots (From Z590 Chipset)

Ổ cứng hỗ trợ

6x SATA 6Gb/s ports (From Z590 Chipset)
3x M.2 slots (Key M)
M2_1 slot (From CPU)
Available only on 11th Gen Intel® CPU
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21 & M2_32 slot (From Z590 Chipset)
Supports PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

Cổng kết nối (Internal)

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning Controller connector

Cổng kết nối (Back Panel)

1 x HDMI
1 x 2.5G LAN port
1 x Flash Bios button
1 x Audio connector
4 x USB 2.0
1 x DP
2 x USB 3.2 Gen 1 5Gbps Type A
3 x USB 3.2 Gen 2 10Gbps Type A
1 x USB 3.2 Gen 2x2 20Gbps Type c
1 x Optical S/PDIF OUT
1 x wifi/bluetooth

LAN / Wireless

1x Intel® I225V 2.5Gbps LAN controller

Kích cỡ

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
