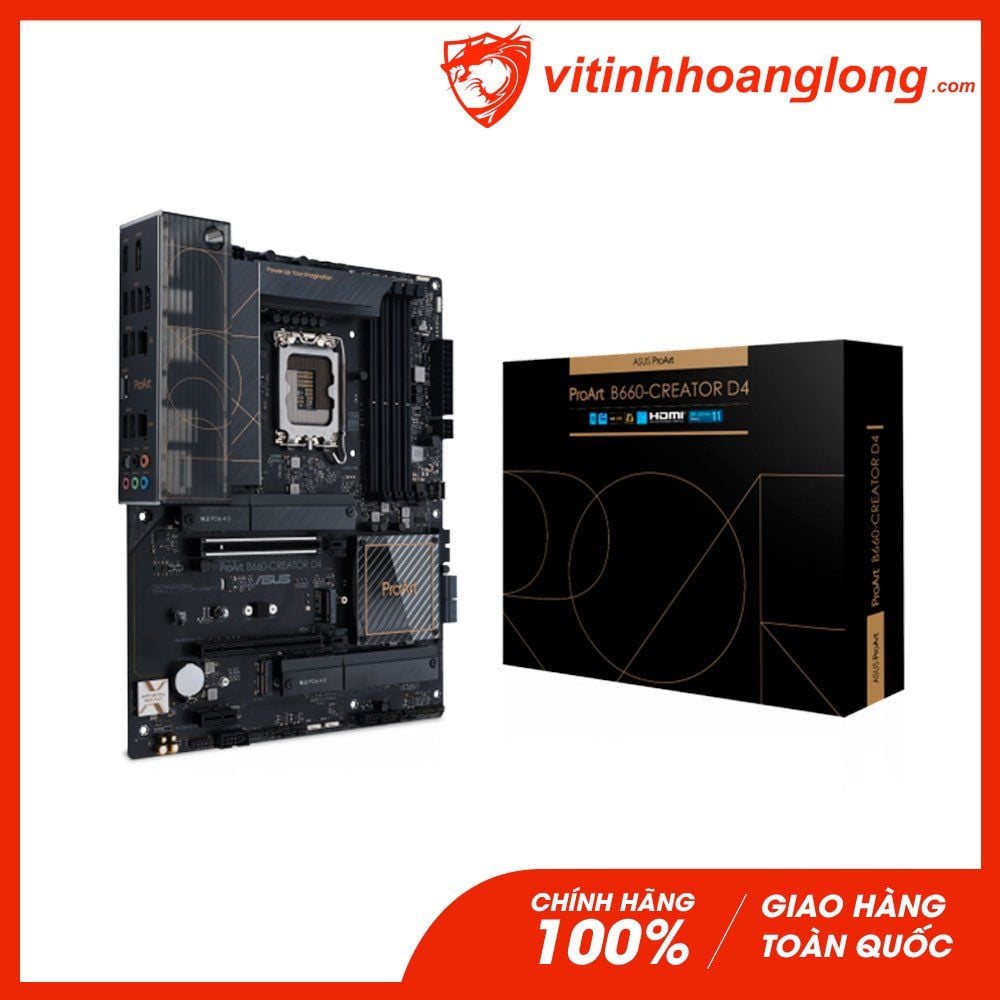

Mainboard Asus Proart B660-Creator D4

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

B660-CREATOR D4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4

5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/

4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/

3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/

2666/2400/2133 Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot

Intel® B660 Chipset*

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot

Ổ cứng hỗ trợ

Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® B660 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)***

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+)

1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

Cổng kết nối (Back Panel)

1 x USB Type-C® port supports USB 3.2 Gen2 and DisplayPort output

4 x USB 3.2 Gen 1 ports (4 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort (Input only)

1 x HDMI® port

1 x Realtek 2.5Gb Ethernet port

1 x Intel® 1Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

LAN / Wireless

M.2 slot only (Key E, PCIe)

Kích cỡ

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
