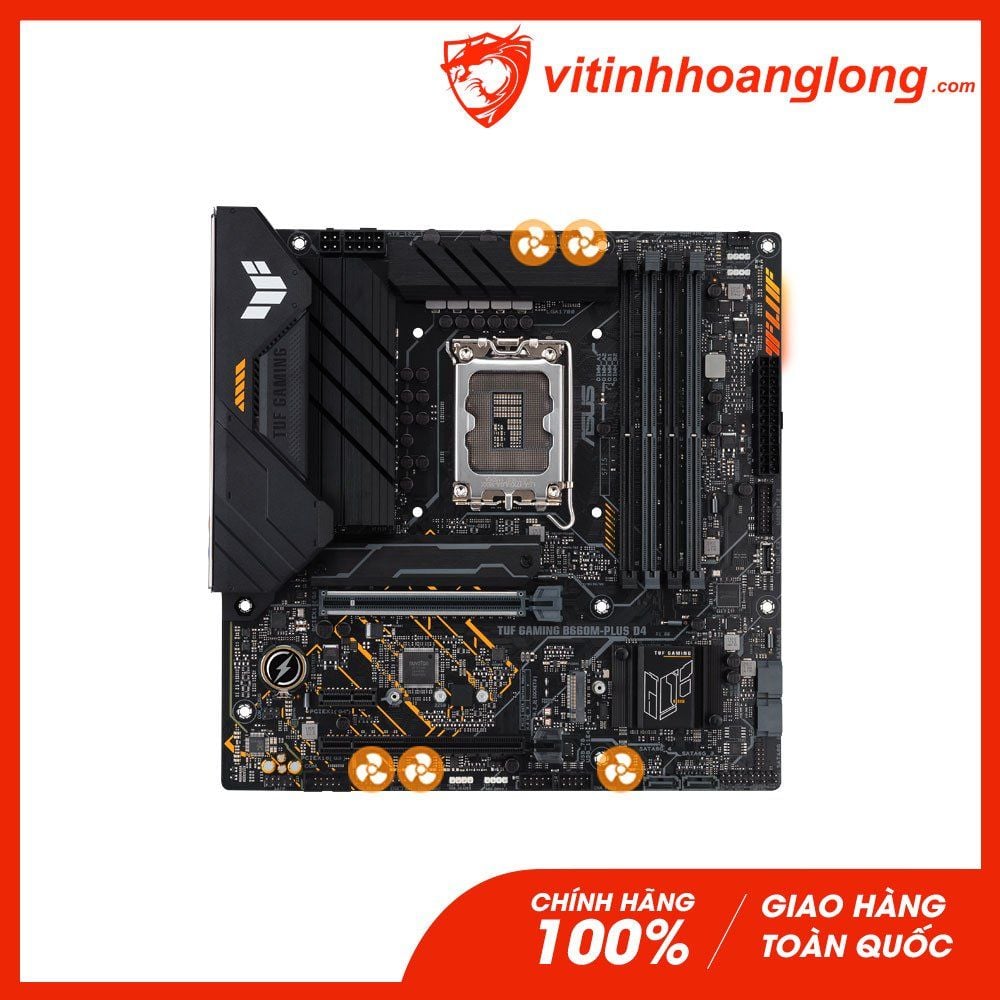

Mainboard Asus Tuf Gaming B660M-Plus D4
- Bảo hành 36 tháng
- Hàng chính hãng 100%
- Bảo hành uy tín, chuyên nghiệp
- Hỗ trợ trả góp 0% qua thẻ tín dụng
- Giá luôn tốt nhất thị trường
- Giá ưu đãi cho khách hàng doanh nghiệp
- Hóa đơn, chứng từ đầy đủ
- Thanh toán linh hoạt, đa dạng
- Giao hàng toàn quốc
Sản phẩm | Bo mạch chủ |
Tên Hãng | Asus |
Model | |
CPU hỗ trợ | Intel |
Chipset | B660 |
RAM hỗ trợ | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/ 4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/ 3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/ 2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
Khe cắm mở rộng | Intel® 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
|
Ổ cứng hỗ trợ | Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
Cổng kết nối (Internal) | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header
|
Cổng kết nối (Back Panel) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
LAN / Wireless |
|
Kích cỡ | microATX |
Sản phẩm |
Bo mạch chủ |
Tên Hãng |
Asus |
Model |
B660M-PLUS D4
|
CPU hỗ trợ |
Intel |
Chipset |
B660 |
RAM hỗ trợ |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/
4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/
3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/
2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
|
Khe cắm mở rộng |
Intel® 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® B660 Chipset*
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
|
Ổ cứng hỗ trợ |
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
|
Cổng kết nối (Internal) |
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
|
Cổng kết nối (Back Panel) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
|
LAN / Wireless |
|
Kích cỡ |
microATX
24.4cm x 24.4cm |
