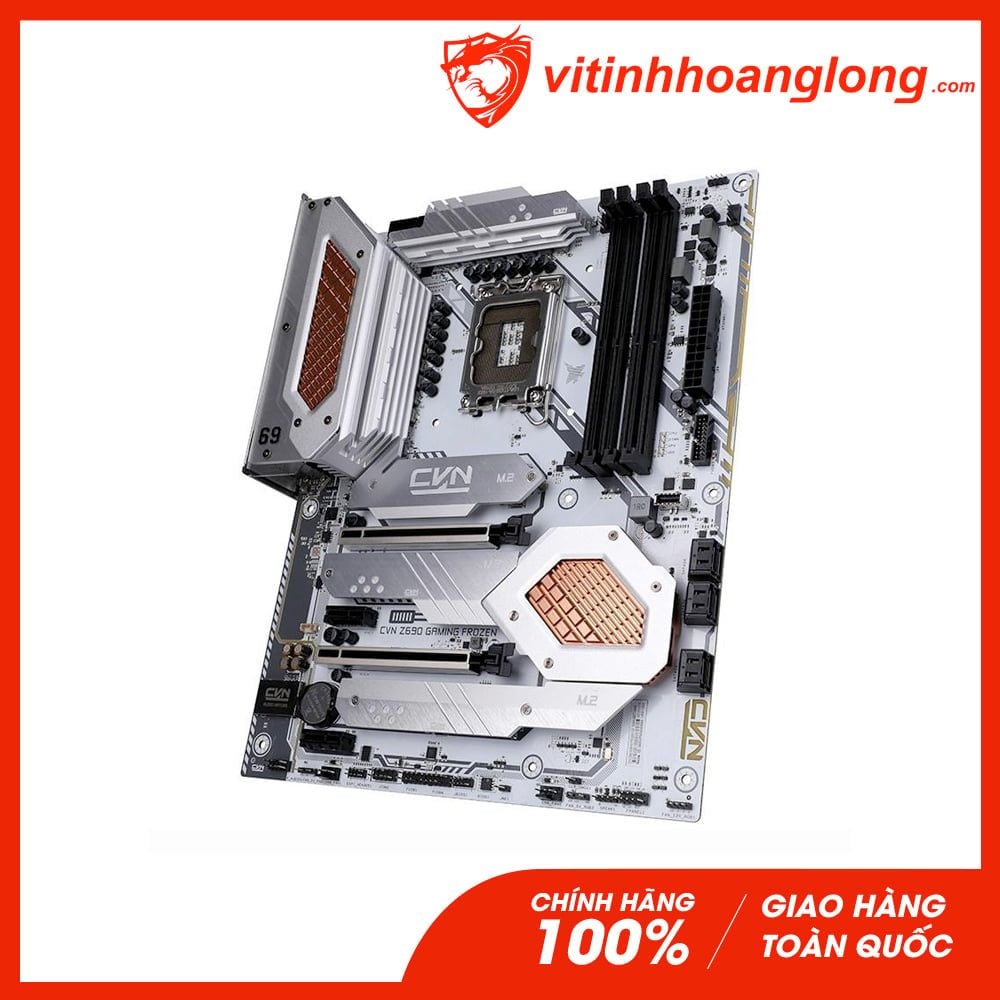

Mainboard Colorful Cvn Z690 Gaming Frozen V20

Motherboard Series

Intel chipset,CVN series

Chipset

Intel Z690

Processor

Supports 12th Gen Intel® Core™ Processors  (Socket 1700)

Memory

4 DIMM slots，support dual channel DDR4-4800(OC)/4600(OC)/4266(OC)/4000(OC))/3733(OC)/3600(OC)/3200/3000/2800/2666/2400 MHz ；（memory overclocking also depends on the matching CPU and the overclocking performance of the memory itself!）

Graphics Support

1*PCI Express 4.0/3.0X16 slot、1*PCI Express 3.0X4 slot

SATA Ports

6*SATA3.0 6Gb/s ports

Board I/O

IO:1*HDMI port,1*DP port; 4*USB 2.0 ports,2*USB 3.2 Gen2(Type-A +Type-C),2*USB 3.2 Gen1 ports; 6*audio ports,WIFI-6; （onboard：2*USB2.0 headers,1*USB3.2 Gen1 Tpye-A header,1*USB3.2 Gen1 Tpye-C header,1*CPU FAN,3*SYS FANS,2*5V 3-pin RGB headers,2*12V 4-pin RGB headers）

Expansion Slots

1*PCI Express 4.0/3.0X16 slot,1*PCI Express3.0X4 slot,2*PCI Express3.0X1 slost,3*M.2 SSD slots(*silk-screen”M2_1″ support PCIE Gen4 x4 SSD,silk-screen”M2_2″ support PCIE Gen3 x4/SATA,silk-screen”M2_3″ support PCIE Gen4 x4 SSD,all support 2242/2260/2280 size SSD)

BIOS

128M UEFI

Hardware Monitor

CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring

LAN

Intel 2.5Gbit LAN

Audio

8-Channel High Definition audio CODEC

Configuration

305 x 245 mm，ATX
