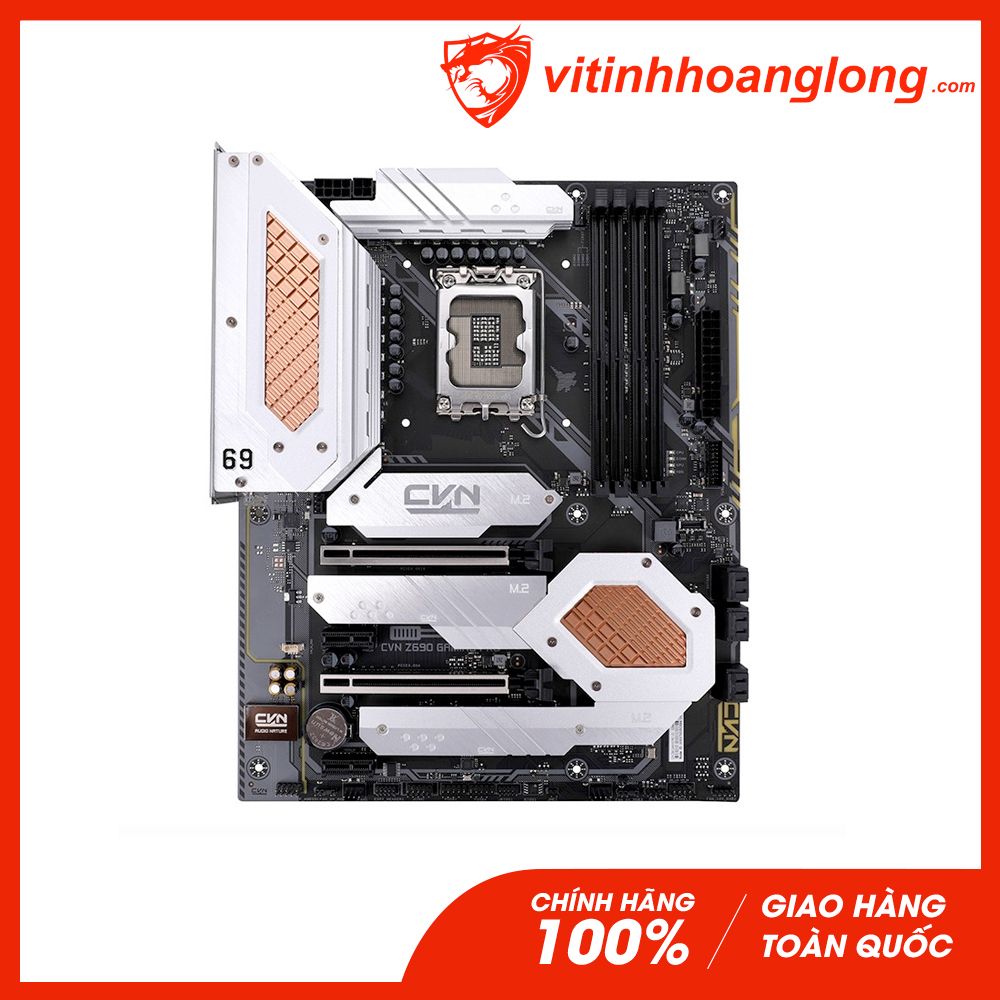

Mainboard Colorful Cvn Z690 Gaming Pro V2
- Bảo hành 36 tháng
- Hàng chính hãng 100%
- Bảo hành uy tín, chuyên nghiệp
- Hỗ trợ trả góp 0% qua thẻ tín dụng
- Giá luôn tốt nhất thị trường
- Giá ưu đãi cho khách hàng doanh nghiệp
- Hóa đơn, chứng từ đầy đủ
- Thanh toán linh hoạt, đa dạng
- Giao hàng toàn quốc
Motherboard Series | Intel chipset,CVN series |
Chipset | Intel Z690 |
Processor | Supports 12th Gen Intel® Core™ Processors (Socket 1700) |
Memory | 4 DIMM slots,support dual channel DDR4-4800(OC)/4600(OC)/4266(OC)/4000(OC))/3733(OC)/3600(OC)/3200/3000/2800/2666/2400 MHz ;(memory overclocking also depends on the matching CPU and the overclocking performance of the memory itself!) |
Graphics Support | 1*PCI Express 4.0/3.0X16 slot、1*PCI Express 3.0X4 slot |
SATA Ports | 6*SATA3.0 6Gb/s ports |
Board I/O | IO:1*HDMI port,1*DP port; 4*USB 2.0 ports,2*USB 3.2 Gen2(Type-A +Type-C),2*USB 3.2 Gen1 ports; 6*audio ports; (onboard:2*USB2.0 headers,1*USB3.2 Gen1 Tpye-A header,1*USB3.2 Gen1 Tpye-C header,1*CPU FAN,3*SYS FANS,2*5V 3-pin RGB headers,2*12V 4-pin RGB headers) |
Expansion Slots | 1*PCI Express 4.0/3.0X16 slot,1*PCI Express3.0X4 slot,2*PCI Express3.0X1 slost,3*M.2 SSD slots(*silk-screen”M2_1″ support PCIE Gen4 x4 SSD,silk-screen”M2_2″ support PCIE Gen3 x4/SATA,silk-screen”M2_3″ support PCIE Gen4 x4 SSD,all support 2242/2260/2280 size SSD) |
BIOS | 128M UEFI |
Hardware Monitor | CPU Fan speed Controlled,SYSTEM Fan speed Monitoring,CPU Temperature Monitoring,System Temperature Monitoring,and Voltage monitoring |
LAN | Intel 2.5Gbit LAN |
Audio | 8-Channel High Definition audio CODEC |
Configuration | 305 x 245 mm,ATX |
Motherboard Series |
Intel chipset,CVN series |
Chipset |
Intel Z690 |
Processor |
Supports 12th Gen Intel® Core™ Processors (Socket 1700) |
Memory |
4 DIMM slots,support dual channel DDR4-4800(OC)/4600(OC)/4266(OC)/4000(OC))/3733(OC)/3600(OC)/3200/3000/2800/2666/2400 MHz ;(memory overclocking also depends on the matching CPU and the overclocking performance of the memory itself!) |
Graphics Support |
1*PCI Express 4.0/3.0X16 slot、1*PCI Express 3.0X4 slot |
SATA Ports |
6*SATA3.0 6Gb/s ports |
Board I/O |
IO:1*HDMI port,1*DP port; 4*USB 2.0 ports,2*USB 3.2 Gen2(Type-A +Type-C),2*USB 3.2 Gen1 ports; 6*audio ports; (onboard:2*USB2.0 headers,1*USB3.2 Gen1 Tpye-A header,1*USB3.2 Gen1 Tpye-C header,1*CPU FAN,3*SYS FANS,2*5V 3-pin RGB headers,2*12V 4-pin RGB headers) |
Expansion Slots |
1*PCI Express 4.0/3.0X16 slot,1*PCI Express3.0X4 slot,2*PCI Express3.0X1 slost,3*M.2 SSD slots(*silk-screen”M2_1″ support PCIE Gen4 x4 SSD,silk-screen”M2_2″ support PCIE Gen3 x4/SATA,silk-screen”M2_3″ support PCIE Gen4 x4 SSD,all support 2242/2260/2280 size SSD) |
BIOS |
128M UEFI |
Hardware Monitor |
CPU Fan speed Controlled,SYSTEM Fan speed Monitoring,CPU Temperature Monitoring,System Temperature Monitoring,and Voltage monitoring |
LAN |
Intel 2.5Gbit LAN |
Audio |
8-Channel High Definition audio CODEC |
Configuration |
305 x 245 mm,ATX |
