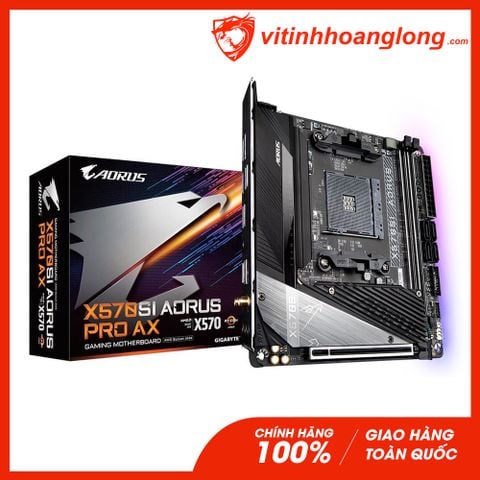

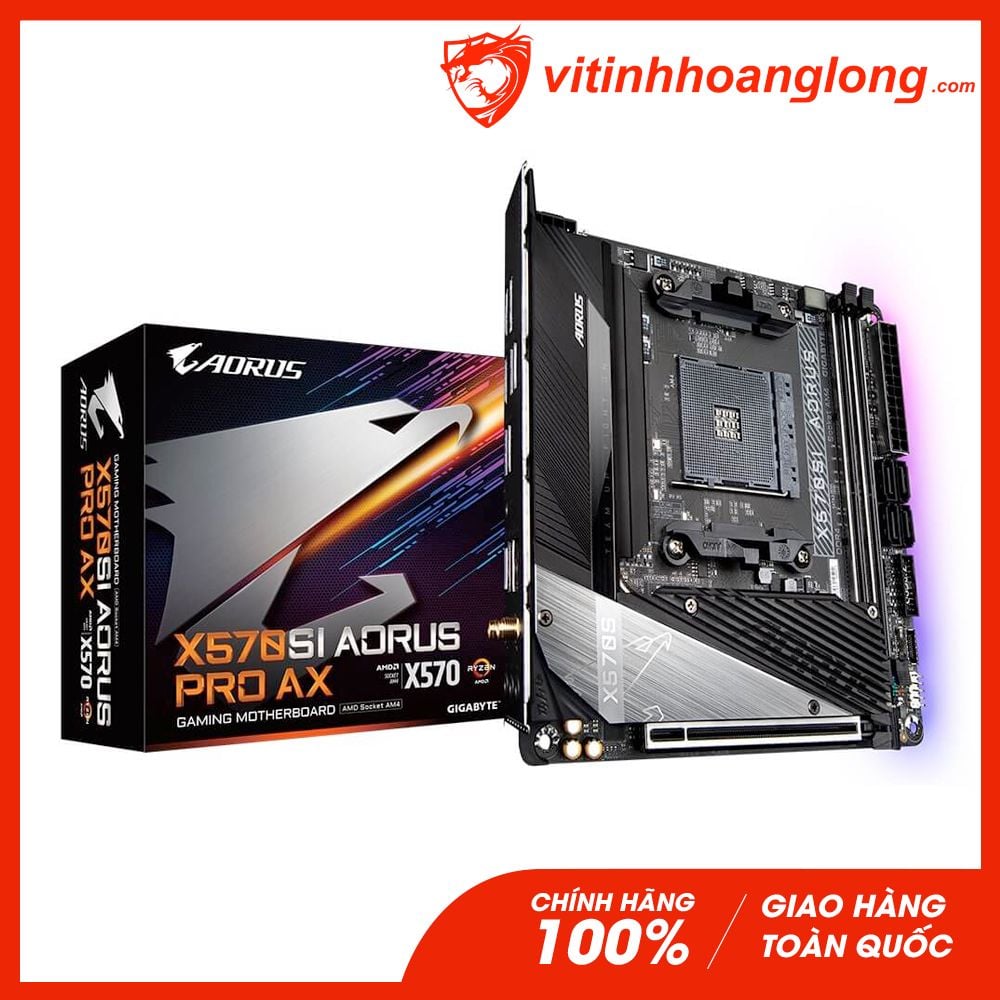

Mainboard Gigabyte X570SI AORUS PRO AX

CPU

·        AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors

(Please refer “CPU Support List” for more information.)

Chipset

·        AMD X570

Memory

·        2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

·        Dual channel memory architecture

·        Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules

·        Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU

·        Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

·        Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics

Integrated Graphics Processor:

·        1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.4 version.

·        2 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

Audio

·        Realtek^® ALC1220-VB Audio CODEC
* The back panel line out jack supports DSD audio.

·        Support for DTS:X^® Ultra

·        High Definition Audio

·        2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

·        Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel^® Wi-Fi 6 AX200 (For PCB rev. 1.0)

·        WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

·        BLUETOOTH 5.2

·        Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

·        AMD Ryzen™ 5000 Series/3000 Series Processors
support PCIe 4.0 x16 mode

·        AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors
support PCIe 3.0 x16 mode

·        AMD Ryzen™ 3000 G-Series/2000 G-Series Processors
support PCIe 3.0 x8 mode

1 x M.2 Socket 1 connector, integrated in the CPU, for the wireless communication module (M2_WIFI)

Storage Interface

1 x M.2 connector (M2A_SOCKET), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

·        AMD Ryzen™ 5000 Series/3000 Series Processors
support SATA and PCIe 4.0 x4/x2 SSDs

·        AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors
support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SOCKET), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:

·        Supporting SATA and PCIe 4.0^(Note)/3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

·        Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

(Note) For AMD Ryzen™ 5000 Series/3000 Series Processors only.

USB

CPU:

·        4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

·        1 x USB Type-C^® port, with USB 3.2 Gen 2 support on the back panel

·        1 x USB Type-C^® port, with USB 3.2 Gen 1 support available through the internal USB header

·        1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

·        2 x USB 3.2 Gen 1 ports available through the internal USB header

·        2 x USB 2.0/1.1 ports available through the internal USB header

Internal I/O Connectors

·        1 x 24-pin ATX main power connector

·        1 x 8-pin ATX 12V power connector

·        1 x CPU fan header

·        2 x system fan headers

·        1 x addressable LED strip header

·        1 x RGB LED strip header

·        4 x SATA 6Gb/s connectors

·        2 x M.2 Socket 3 connectors

·        1 x front panel header

·        1 x front panel audio header

·        1 x speaker header

·        1 x USB Type-C^® header, with USB 3.2 Gen 1 support

·        1 x USB 3.2 Gen 1 header

·        1 x USB 2.0/1.1 header

·        1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)

·        1 x Clear CMOS jumper

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Back Panel Connectors

·        1 x DisplayPort

·        2 x HDMI ports

·        1 x USB 3.2 Gen 2 Type-A port (red)

·        4 x USB 3.2 Gen 1 ports

·        1 x USB Type-C^® port, with USB 3.2 Gen 2 support

·        1 x Q-Flash Plus button

·        1 x RJ-45 port

·        2 x SMA antenna connectors (2T2R)

·        3 x audio jacks

I/O Controller

·        iTE^® I/O Controller Chip

H/W Monitoring

·        Voltage detection

·        Temperature detection

·        Fan speed detection

·        Water cooling flow rate detection

·        Fan fail warning

·        Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

·        1 x 256 Mbit flash

·        Use of licensed AMI UEFI BIOS

·        PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

·        Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer

·        Support for Q-Flash Plus

·        Support for Q-Flash

·        Support for Xpress Install

Bundled Software

·        Norton^® Internet Security (OEM version)

·        cFosSpeed

Operating System

·        Support for Windows 10 64-bit

Form Factor

·        Mini-ITX Form Factor; 17.0cm x 17.0cm
