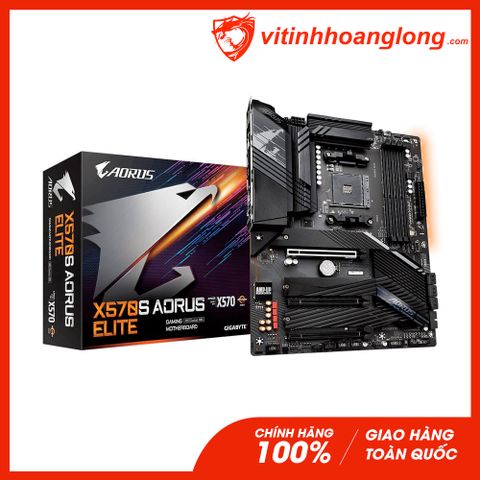

Mainboard Gigabyte X570S AORUS ELITE

Tình trạng: Còn hàng

Mã sản phẩm: MGIGAX570SAOELI

Thương hiệu: Gigabyte

Dòng sản phẩm: Mainboard

5,650,000₫

ĐẶC ĐIỂM

AMD X570 4 khe ATX

Thông số kỹ thuật

Đang cập nhật nội dung

Đặt mua ngay Giao hàng tận nơi nhanh chóng Thêm vào giỏ Thêm vào giỏ để chọn tiếp Mua trả góp Thủ tục đơn giản

Chia sẻ trên Facebook
Chia sẻ trên Twitter
Chia sẻ trên Pinterest
Chia sẻ trên Linkedin
Thêm vào so sánh
Thêm vào yêu thích

Mainboard Gigabyte X570S AORUS ELITE

CPU

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors

Chipset

AMD X570

Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor:

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Audio

Realtek^® ALC1220-VB codec
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN

Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode
AMD Ryzen™ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

Supporting PCIe 4.0^(Note)/3.0 x4 mode

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

Supporting PCIe 4.0^(Note)/3.0 x2 mode
* The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode.

(Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.

Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

(Note) For AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only.

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs:

AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs:

Supporting SATA and PCIe 4.0^(Note)/3.0 x4/x2 SSDs

6 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

(Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.

USB

CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset+ASMedia^® USB 3.2 Gen 2×2 Controller:

1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2×2 support

Chipset:

1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C^® header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Back Panel Connectors

4 x USB 2.0/1.1 ports
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x Q-Flash Plus button
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support

Xem thêm

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors
Chipset	AMD X570
Memory	· 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory · Dual channel memory architecture · Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules · Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU · Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules · Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor: · 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
Audio	· Realtek^® ALC1220-VB codec * The back panel line out jack supports DSD audio. · High Definition Audio · 2/4/5.1/7.1-channel · Support for S/PDIF Out
LAN	· Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: · AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode · AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode · AMD Ryzen™ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: · Supporting PCIe 4.0^(Note)/3.0 x4 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: · Supporting PCIe 4.0^(Note)/3.0 x2 mode * The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode. (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
Multi-Graphics Technology	· Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies (Note) For AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only.
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs: · AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs · AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs: · Supporting SATA and PCIe 4.0^(Note)/3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: · Support for RAID 0, RAID 1, and RAID 10 * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
USB	CPU: · 4 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia^® USB 3.2 Gen 2×2 Controller: · 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2×2 support Chipset: · 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header · 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel · 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: · 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	· 1 x 24-pin ATX main power connector · 1 x 8-pin ATX 12V power connector · 1 x CPU fan header · 1 x water cooling CPU fan header · 3 x system fan headers · 1 x system fan/water cooling pump header · 2 x addressable LED strip headers · 2 x RGB LED strip headers · 1 x CPU cooler LED strip/RGB LED strip header · 3 x M.2 Socket 3 connectors · 6 x SATA 6Gb/s connectors · 1 x front panel header · 1 x front panel audio header · 1 x USB Type-C^® header, with USB 3.2 Gen 2 support · 2 x USB 3.2 Gen 1 headers · 2 x USB 2.0/1.1 headers · 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) · 1 x Thunderbolt™ add-in card connector · 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors	· 4 x USB 2.0/1.1 ports · 1 x HDMI port · 4 x USB 3.2 Gen 1 ports · 1 x Q-Flash Plus button · 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support · 3 x USB 3.2 Gen 2 Type-A ports (red) · 1 x RJ-45 port · 1 x optical S/PDIF Out connector · 5 x audio jacks
I/O Controller	· iTE^® I/O Controller Chip
H/W Monitoring	· Voltage detection · Temperature detection · Fan speed detection · Water cooling flow rate detection · Fan fail warning · Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	· 1 x 256 Mbit flash · Use of licensed AMI UEFI BIOS · PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software	· Norton^® Internet Security (OEM version) · Realtek^® 8125 Gaming LAN Bandwidth Control Utility
Operating System	· Support for Windows 10 64-bit
Form Factor	· ATX Form Factor; 30.5cm x 24.4cm
