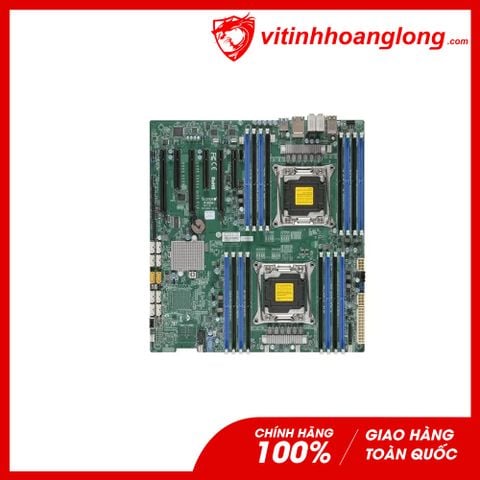

Mainboard Server SuperMicro MBD-X10DAi-O hỗ trợ V4/ V3, 2 CPU socket 2011-3

Tham gia Cộng đồng Vi Tính Hoàng Long để nhận những ưu đãi thường xuyên chỉ áp dụng cho thành viên trong group.

Mainboard Server SuperMicro MBD-X10DAi-O hỗ trợ V4/ V3, 2 CPU socket 2011-3

Tình trạng: Còn hàng

Mã sản phẩm: Đang cập nhật

Thương hiệu: SUPERMICRO

Dòng sản phẩm: Mainboard

5,950,000₫

Thông số kỹ thuật

Bảo hành 1 tháng
Hàng chính hãng 100%
Bảo hành uy tín, chuyên nghiệp
Hỗ trợ trả góp 0% qua thẻ tín dụng
Giá luôn tốt nhất thị trường
Giá ưu đãi cho khách hàng doanh nghiệp
Hóa đơn, chứng từ đầy đủ
Thanh toán linh hoạt, đa dạng
Giao hàng toàn quốc

Đặt mua ngay Giao hàng tận nơi nhanh chóng Thêm vào giỏ Thêm vào giỏ để chọn tiếp Mua trả góp Thủ tục đơn giản

Chia sẻ trên Facebook
Chia sẻ trên Twitter
Chia sẻ trên Pinterest
Chia sẻ trên Linkedin
Thêm vào so sánh
Thêm vào yêu thích

Mainboard Server SuperMicro MBD-X10DAi-O hỗ trợ V4/ V3, 2 CPU socket 2011-3

Physical Stats
Form Factor	E-ATX
Dimensions	12" x 13" (30.5cm x 33.0cm)
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
CPU	Dual Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 160W TDP, 1 QPI up to 9.6GT/s
Cores / Cache	Up to 22 cores † / Up to 55MB† cache
Note	† BIOS version 2.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity	1TB 3DS ECC/non-ECC RDIMM, DDR4-2400MHzUp to 2TB 3DS ECC LRDIMM, DDR4-2400MHz, in 16 DIMM slots
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 4GB, 8GB, 16GB, 32GB
	LRDIMM: 32GB, 64GB
	3DS LRDIMM: 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612
SATA	Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
AHCI SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Dual LAN with Intel® i210 Gigabit Ethernet Controller
Audio	RealTek ALC1150 HD Audio
Input / Output
SATA	10 SATA3 (6Gbps) port
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	5 USB 2.0 ports (2 rear + 2 via headers + 1 Type A)
USB	6 USB 3.0 ports (4 rear + 2 via headers)
TPM	1 TPM Header
Expansion Slots
PCI-E	3 PCI-E 3.0 x16,
	2 PCI-E 3.0 x8
	1 PCI-E 2.0 x4 (in x8 slot)
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP)
	PCI 2.3
	ACPI 1.0 / 2.0 / 3.0 / 4.0
	SMBIOS 2.7.1
	UEFI 2.3.1
Management
Software	NMI, SuperDoctor® 5, Watchdog
Power Configurations	ACPI Power Management
Power Configurations	Power-on mode for AC power recovery
PC Health Monitoring
Voltage	+12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator
FAN	8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
Temperature	CPU thermal trip support, Monitoring for CPU and chassis environment, Thermal Monitor 2 (TM2) support, PECI, Thermal Control for 8 Fan Connectors
LED	CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features	Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC
Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	10% ~ 95% (non-condensing)
