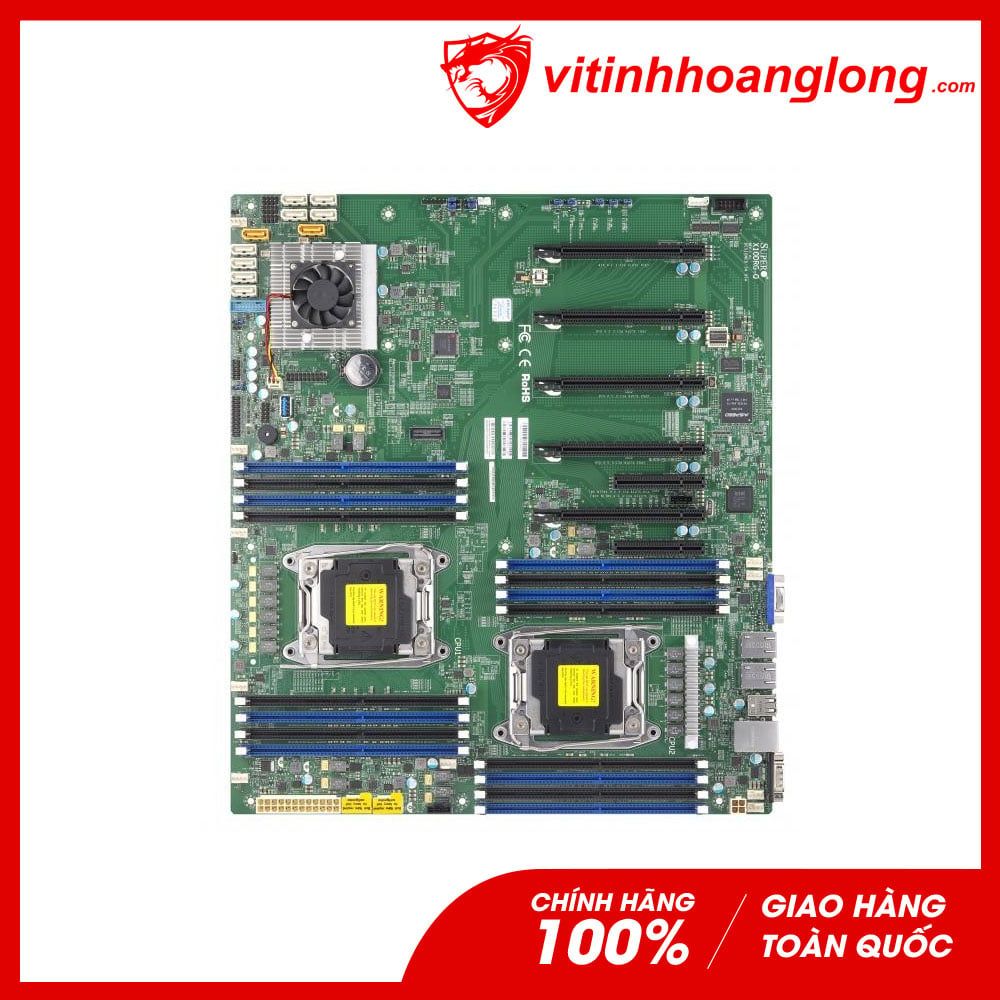

Mainboard Server SuperMicro MBD-X10DRG-Q-B hỗ trợ V4/ V3, 2 CPU LGA-2011-3

Tham gia Cộng đồng Vi Tính Hoàng Long để nhận những ưu đãi thường xuyên chỉ áp dụng cho thành viên trong group.

Mainboard Server SuperMicro MBD-X10DRG-Q-B hỗ trợ V4/ V3, 2 CPU LGA-2011-3

Tình trạng: Còn hàng

Mã sản phẩm: Đang cập nhật

Thương hiệu: SUPERMICRO

Dòng sản phẩm: Mainboard

14,204,000₫

Thông số kỹ thuật

Bảo hành 36 tháng
Hàng chính hãng 100%
Bảo hành uy tín, chuyên nghiệp
Hỗ trợ trả góp 0% qua thẻ tín dụng
Giá luôn tốt nhất thị trường
Giá ưu đãi cho khách hàng doanh nghiệp
Hóa đơn, chứng từ đầy đủ
Thanh toán linh hoạt, đa dạng
Giao hàng toàn quốc

Đặt mua ngay Giao hàng tận nơi nhanh chóng Thêm vào giỏ Thêm vào giỏ để chọn tiếp Mua trả góp Thủ tục đơn giản

Chia sẻ trên Facebook
Chia sẻ trên Twitter
Chia sẻ trên Pinterest
Chia sẻ trên Linkedin
Thêm vào so sánh
Thêm vào yêu thích

Mainboard Server SuperMicro MBD-X10DRG-Q-B hỗ trợ V4/ V3, 2 CPU LGA-2011-3

Product SKUs
MBD-X10DRG-Q	X10DRG-Q
Physical Stats
Form Factor	Proprietary
Dimensions	15.2" x 13.2" (38.61cm x 33.53cm)
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
CPU	Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s
Cores / Cache	Up to 22 cores † / Up to 55MB† cache
Note	† BIOS version 2.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity	16x 288-pin DDR4 DIMM slots ,
Memory Capacity	Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
	LRDIMM: 32GB, 64GB
	3DS LRDIMM: 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612
SATA	RAID 0,1,5,10
SATA	Intel® C612 controller for 6 SATA3 (6 Gbps) ports;
AHCI SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0
	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
	ASPEED AST2400 BMC
Network Controllers	Dual LAN with Intel® i350 Gigabit Ethernet Controller
	Single LAN with Virtual Machine Device Queues reduce I/O overhead
	Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
	Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Audio	HD Audio with optical S/PDIF
Graphics	Aspeed AST2400 BMC
Input / Output
SATA	10 SATA3 (6Gbps) port
LAN	1 RJ45 Gigabit Ethernet LAN ports
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 2.0 ports (2 rear + 2 headers)
USB	5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output	1 VGA port
Serial Port / Header	2 COM Ports (1 rear, 1 header)
TPM	1 TPM Header
Others	Thunderbolt AOC Header
Expansion Slots
PCI-E	4 PCI-E 3.0 x16,
	1 PCI-E 3.0 x8 (in x16 slot),
	1 PCI-E 3.0 x8 Or 2 PCI-E 3.0 x8 (in x16 slot)
	1 PCI-E 2.0 x4 (in x8 slot),
	(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP)
	PCI 2.3
	ACPI 1.0 / 2.0 / 3.0 / 4.0
	USB Keyboard support
	SMBIOS 2.7.1
	UEFI 2.3.1
