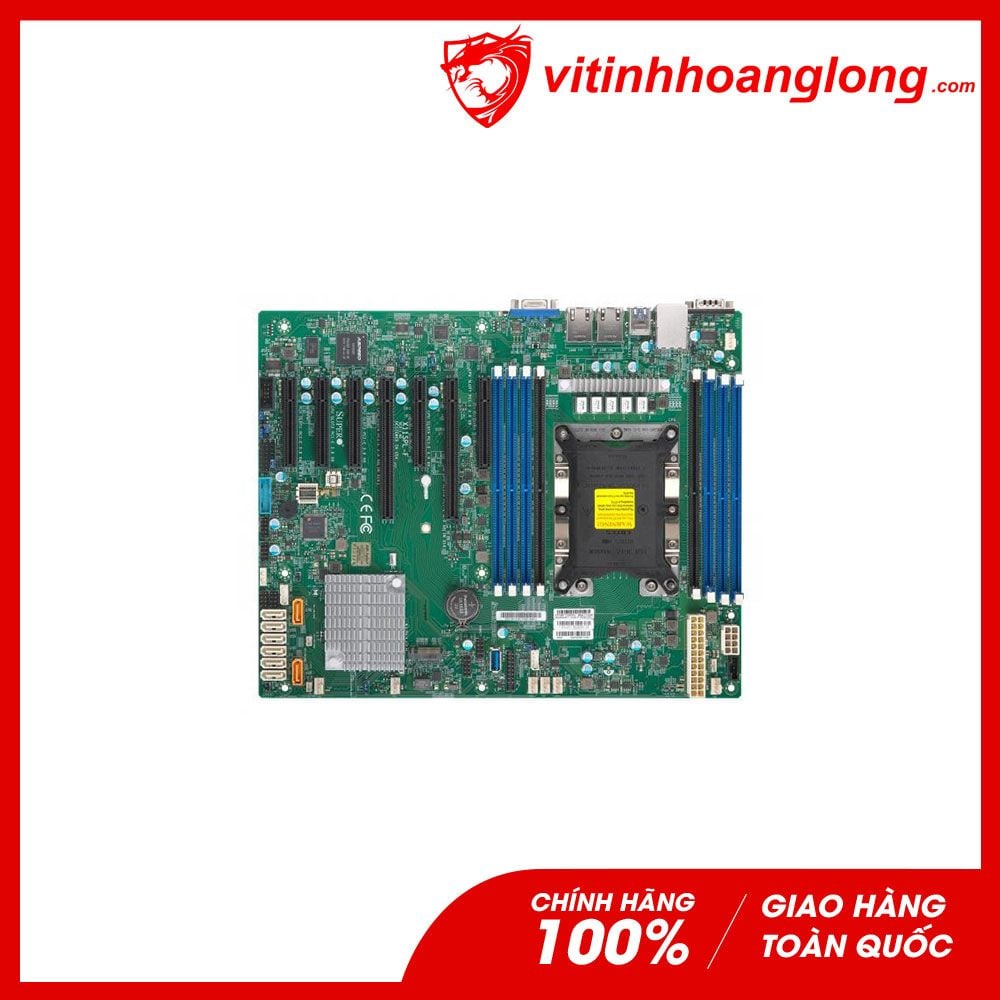

Mainboard Server SuperMicro MBD-X11SPL-F-O socket 3647

Hãng sản xuất

Supermicro

Chủng loại

MBD-X11SPL-F-o

CPU hỗ trợ

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP

Chipset

Intel® C621 Chipset

Bộ nhớ trong

Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots; Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)

VGA onboard

ASPEED AST2500

Âm thanh

Khe mở rộng

2 PCI-E 3.0 x8 (in x16 slot),

4 PCI-E 3.0 x8,

1 PCI-E 3.0 x4 (in x8 slot)

Chuẩn lưu trữ

M.2 Interface: PCI-E 3.0 x4 and SATA

8 SATA3 (6Gbps) port

Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Cổng giao tiếp

2 RJ45 Gigabit Ethernet LAN ports

8 USB 2.0 ports (2 rear + 6 headers)

LAN

Dual LAN with 1GbE with Intel® I210

Kích thước

ATX (30.48cm x 24.38cm)
