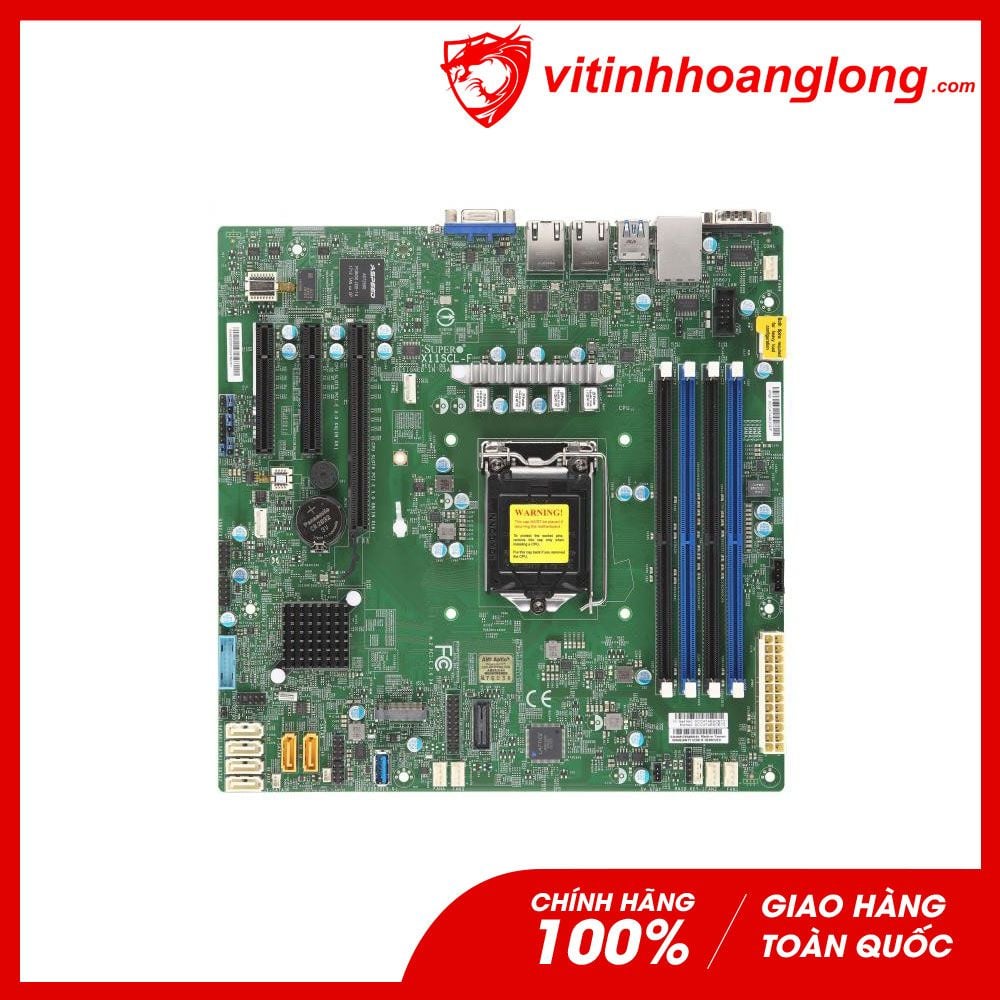

Mainboard Server SuperMicro MBD-X11SCL-F-O socket Intel 1151

Tham gia Cộng đồng Vi Tính Hoàng Long để nhận những ưu đãi thường xuyên chỉ áp dụng cho thành viên trong group.

Mainboard Server SuperMicro MBD-X11SCL-F-O socket Intel 1151

Tình trạng: Còn hàng

Mã sản phẩm: Đang cập nhật

Thương hiệu: SUPERMICRO

Dòng sản phẩm: Mainboard

4,876,000₫

Thông số kỹ thuật

Bảo hành 36 tháng
Hàng chính hãng 100%
Bảo hành uy tín, chuyên nghiệp
Hỗ trợ trả góp 0% qua thẻ tín dụng
Giá luôn tốt nhất thị trường
Giá ưu đãi cho khách hàng doanh nghiệp
Hóa đơn, chứng từ đầy đủ
Thanh toán linh hoạt, đa dạng
Giao hàng toàn quốc

Đặt mua ngay Giao hàng tận nơi nhanh chóng Thêm vào giỏ Thêm vào giỏ để chọn tiếp Mua trả góp Thủ tục đơn giản

Chia sẻ trên Facebook
Chia sẻ trên Twitter
Chia sẻ trên Pinterest
Chia sẻ trên Linkedin
Thêm vào so sánh
Thêm vào yêu thích

Mainboard Server SuperMicro MBD-X11SCL-F-o (Single LGA 1151,E2100/E2200, Intel 8th/9th,4DIMM,AST2500 1VGA Port,2Lan 1G, IPMI)

Physical Stats
Form Factor	microATX
Dimensions	9.6″ x 9.6″ (24.38cm x 24.38cm)
Processor/Cache
CPU	8th/9th Generation Intel® Corei3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
CPU	Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Cores / Cache	6 cores, 12 threads
Note	BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core i3/Pentium®/Celeron® Processors
System Memory
Memory Capacity	Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type	2667/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C242
SATA	Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with 1GbE with Intel® I210
Graphics	Aspeed AST2500 BMC
Input / Output
USB	6 USB 2.0 ports (2 rear + 4 via headers)
USB	5 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers, 1 Type A)
Video Output	1 VGA port
Serial Port / Header	2 COM Ports (1 rear, 1 header)
TPM	1 TPM Header
Expansion Slots
PCI-E	1 PCI-E 3.0 x8 (in x16 slot),
PCI-E	2 PCI-E 3.0 x4 (in x8 slot)
M.2	M.2 Interface: 1 PCI-E 3.0 x4
	Form Factor: 2280/22110
	Key: M-Key
	Double Height Connector
System BIOS
BIOS Type	UEFI 256Mb
BIOS Features	ACPI 6.0
	SMBIOS 2.7
	Plug and Play (PnP)
	RTC (Real Time Clock) Wakeup
	UEFI 2.7
	USB Keyboard support
	PCI 3.0
Management
Software	IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor® 5
Power Configurations	ACPI Power Management
Power Configurations	Power-on mode for AC power recovery
PC Health Monitoring
Voltage	+12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN	5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
Temperature	Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment
LED	CPU / System Overheat LED, UID/Remote UID
Other Features	ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL
Operating Environment
Operating Temperature Range	0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range	-40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range	8% – 90% (non-condensing)
Non-Operating Relative Humidity Range	5% – 95% (non-condensing)
