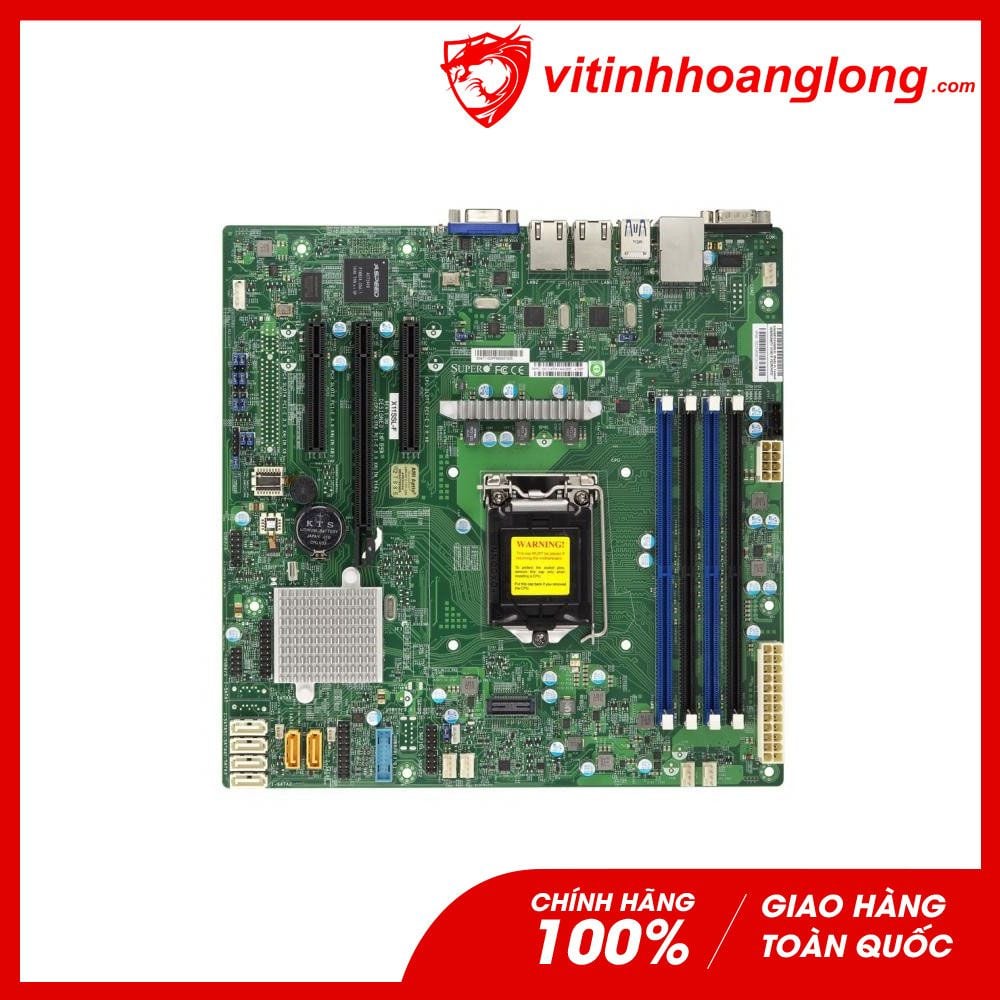

Mainboard Server SuperMicro MBD-X11SSL-O socket LGA 1151 hỗ trợ V6

Tình trạng: Còn hàng

Mã sản phẩm: Đang cập nhật

Thương hiệu: SUPERMICRO

Dòng sản phẩm: Mainboard

4,452,000₫

Mainboard Server SuperMicro MBD-X11SSL-o (Single LGA 1151,E3-1200V5/V6, Intel 7th/6th,4DIMM,AST1400 1VGA Port,2Lan)

Physical Stats
Form Factor	Micro-ATX
Dimensions	9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU	Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.
CPU	Single Socket H4 (LGA 1151) supported, CPU TDP support 80W
Note	BIOS version 2.0 or above is required to support 7th Generation Intel® Core i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
System Memory
Memory Capacity	64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C232
SATA	Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers	Dual LAN with Intel® Ethernet Controller I210-AT
Graphics	Aspeed AST1400
Input / Output
USB	6 USB 2.0 ports (2 rear + 4 headers)
USB	5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output	1 VGA port
Serial Port / Header	1 COM Port (1 rear)
TPM	TPM Header
Expansion Slots
PCI-E	1 PCI-E 3.0 x8 (in x16 slot),
	1 PCI-E 3.0 x8,
	1 PCI-E 3.0 x4 (in x8 slot)
